'Whispering galleries' improve thin solar panels

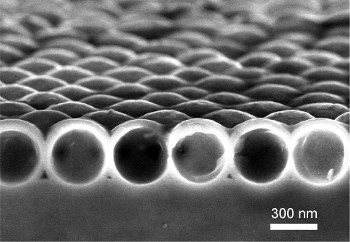

A scanning electron microscope image of a single layer of nanocrystalline-silicon shells. The hollow shell structure improves light absorption while reducing the cost and weight of the device. [Photo: Yan Yao/Stanford University]
By Andrew Myers, Stanford University School of Engineering
Visitors to Statuary Hall in the U.S. Capitol Building may have experienced a curious acoustic feature that allows a person to whisper softly at one side of the cavernous, half-domed room and for another on the other side to hear every syllable. Sound is whisked around the semi-circular perimeter of the room almost without flaw. The phenomenon is known as a whispering gallery.
In a paper published in Nature Communications, a team of engineers at Stanford describes how it has created tiny hollow spheres of photovoltaic nanocrystalline-silicon and harnessed physics to do for light what whispering galleries do for sound. The results, say the engineers, could dramatically reduce materials usage and processing cost.
"Nanocrystalline-silicon is a great photovoltaic material. It has a high electrical efficiency and is durable in the harsh sun," says Shanhui Fan, an associate professor of electrical engineering at Stanford and co-author of the paper. "Both have been challenges for other types of thin solar films."
The downfall of nanocrystalline-silicon, however, has been its relatively poor absorption of light, which requires thick layering that takes a long time to manufacture.
The engineers call their spheres nanoshells. Producing the shells takes a bit of engineering magic. The researchers first create tiny balls of silica - the same stuff glass is made of - and coat them with a layer of silicon. They then etch away the glass center using hydrofluoric acid that does not affect the silicon, leaving behind the all-important light-sensitive shell. These shells form optical whispering galleries that capture and recirculate the light.
"The light gets trapped inside the nanoshells," says Yi Cui, an associate professor of materials science engineering at Stanford and a senior author of the paper. "It circulates round and round rather than passing through and this is very desirable for solar applications."
The researchers estimate that light circulates around the circumference of the shells a few times, during which energy from the light gets absorbed gradually by the silicon. The longer the shells can keep the light in the material, the better the absorption will be.
"This is a new approach to broadband light absorption. The use of whispering-gallery resonant modes inside nanoshells is very exciting," says Yan Yao, a post-doctoral researcher in the Cui Lab and a co-lead author of the paper. "It not only can lead to better solar cells, but it can be applied in other areas where efficient light absorption is important, such as solar fuels and photo-detectors."
Through thick and thin
In measuring light absorption in a single layer of nanoshells, the research showed significantly more absorption over a broader spectrum of light than a flat layer of the silicon deposited side-by-side with the nanoshells.
"The nanometer spherical shells really hit a sweet spot and maximize the absorption efficiency of the film. The shells both allow light to enter the film easily and they trap it so as to enhance the absorption in a way larger-scale counterparts cannot. That is the power of nanotechnology," says Jie Yao, a post-doctoral researcher in Cui's lab and co-lead author of the paper.
Further, by depositing two or even three layers of nanoshells atop one another, the team teased the absorption higher still. With a three-layer structure, they were able to achieve total absorption of 75 percent of light in certain important ranges of the solar spectrum.
Having demonstrated improved absorption, the engineers went on to show how their clever structure will pay dividends beyond the mere trapping of light.
First, nanoshells can be made quickly. "A micron-thick flat film of solid nanocrystalline-silicon can take a few hours to deposit, while nanoshells achieving similar light absorption take just minutes," says Yan.
The nanoshell structure likewise uses substantially less material, one-twentieth that of solid nanocrystalline-silicon.
"A twentieth of the material, of course, costs one-twentieth and weighs one-twentieth what a solid layer does," says Jie. "This might allow us to cost-effectively produce better-performing solar cells of rare or expensive materials."
"The solar film in our paper is made of relatively abundant silicon, but down the road, the reduction in materials afforded by nanoshells could prove important to scaling up the manufacturing of many types of thin film cells, such as those which use rarer materials like tellurium and indium," says Vijay Narasimhan, a doctoral candidate in the Cui Lab and co-author of the paper.
Finally, the nanoshells are relatively indifferent to the angle of incoming light and the layers are thin enough to bend and twist without damage. These characteristics might open up an array of new applications in situations where achieving the optimal incoming angle of the sun is not always possible. Imagine solar sails on the high seas or photovoltaic clothing for mountain climbing.
"This new structure is just the beginning and demonstrates some of the exciting potentials for using advanced nanophotonic structures to improve solar cell efficiency," says Shanhui Fan.
This research was funded as part of the Center on Nanostructuring for Efficient Energy Conversion (CNEEC) at Stanford University and by awards from the U.S. Department of Energy.
