GM, NASA creating robotic gloves for human use

General Motors and NASA want to give space and Earth-bound workers alike a helping hand - a bionic one, that is.

The two organizations are jointly developing a robotic glove that auto workers and astronauts can wear to help do their respective jobs better while potentially reducing the risk of repetitive stress injuries.

The Human Grasp Assist device, known internally in both organizations as the K-glove or Robo-Glove, resulted from GM and NASA's Robonaut 2 (R2) project, which launched the first human-like robot into space in 2011. R2 is a permanent resident of the International Space Station.

When engineers, researchers, and scientists from GM and NASA began collaborating on R2 in 2007, one of the design requirements was for the robot to operate tools designed for humans right alongside astronauts in outer space and factory workers on Earth. The team achieved an unprecedented level of hand dexterity on R2 by using leading-edge sensors, actuators, and tendons comparable to the nerves, muscles, and tendons in a human hand.

Research shows that continuously gripping a tool can cause fatigue in hand muscles within a few minutes. Initial testing of the Robo-Glove indicates the wearer can hold a grip longer and more comfortably.

So what exactly can this thing do?

"When fully developed, the Robo-Glove has the potential to reduce the amount of force that an auto worker would need to exert when operating a tool for an extended time or with repetitive motions," says Dana Komin, GM's manufacturing engineering director, Global Automation Strategy and Execution. "In so doing, it is expected to reduce the risk of repetitive stress injury."

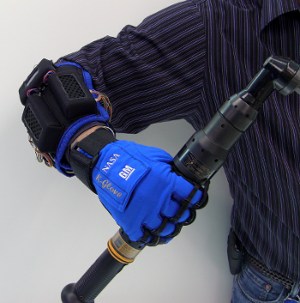

For example, an astronaut working in a pressurized suit outside the space station or an assembly operator in a factory might need to use 15 to 20 lb of force to hold a tool during an operation, but with the robotic glove only 5 to 10 lb of force might need to be applied.

"The prototype glove offers my space-suit team a promising opportunity to explore new ideas, and [the concept] challenges our traditional thinking of what extravehicular activity hand dexterity could be," says Trish Petete, division chief, Crew and Thermal Systems Division, NASA Johnson Space Center.

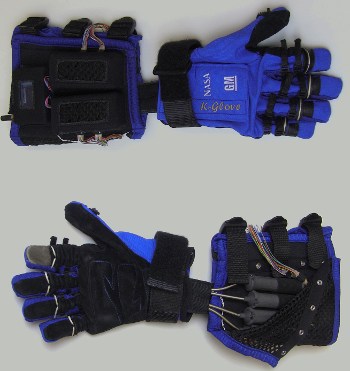

Inspired by the finger actuation system of R2, actuators are embedded into the upper portion of the glove to provide grasping support to human fingers. The pressure sensors, similar to the sensors that give R2 its sense of touch, are incorporated into the fingertips of the glove to detect when the user is grasping a tool. When the user grasps the tool, the synthetic tendons automatically retract, pulling the fingers into a gripping position and holding them there until the sensor is released.

GM and NASA have submitted 46 patent applications for R2, including 21 for R2's hand and four for the Robo-Glove alone.

The first prototype of the glove was completed in March 2011, with a second-generation unit arriving three months later. The fabric for the glove was produced by Oceaneering Space Systems, the same company that provided R2's "skin."

The current prototypes weigh about 2 lb and include the control electronics, actuators, and a small display for programming and diagnostics. An off-the-shelf lithium-ion power-tool battery with a belt clip is used to power the system. A third-generation prototype, which will use repackaged components to reduce the size and weight of the system, is nearing completion.

"We are continuously looking for ways to improve safety and productivity on the shop floor," Komin says. "Our goal is to bring this technology to the shop floor in the near future."

Source: General Motors

Published March 2012
