Spaceship superalloy technology aids Ford Fusion 2.0-liter turbo durability

Enthusiasts will say the all-new Ford Fusion equipped with the 2.0-liter EcoBoost turbo engine is a rocket ship. Fusion engineers will tell you parts of its engine depend on technology from one.

To prolong turbo life and combat thermal fatigue, powertrain engineers for the new Ford Fusion, in conjunction with a team at supplier BorgWarner, went to the upper limits of commercially available turbo materials when deciding on the turbine wheel for the turbocharger fitted to 2.0-liter EcoBoost variants.

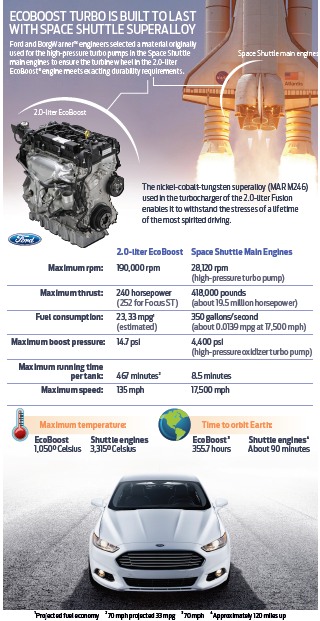

The same material, a nickel-cobalt-tungsten superalloy called MAR-M246, has been tried and tested in outer space; a version of it was used on the space shuttle main engine's high-pressure fuel turbo pump and the blades of its high-pressure oxidizer turbo pump.

The upper temperature limit for the turbine wheel used on the 2.0-liter EcoBoost engine in Edge and Explorer is 970 degrees C (1,778 degrees F). But in the sporty 2.0-liter EcoBoost for Fusion and Focus ST, the addition of tungsten and cobalt gives the alloy an upper temperature limit of 1,050 degrees C (1,922 degrees F).

The benefit of using such a high-temperature alloy, say Ford engineers, is that Fusion 2.0-liter drivers can enjoy enthusiastic and spirited driving for the life of the car without degrading turbo reliability or its mechanical integrity.

Fusion owners can also brag about the fact that the BorgWarner K03 turbocharger features both water and oil cooling; when the engine is running, it is primarily oil-cooled, but after the engine is turned off, the water cooling system creates a thermal water siphon to help draw heat away from the turbocharger. As a bonus, they might go on about how their Fusion 2.0-liter turbo's performance is further strengthened by an integrated exhaust manifold design that combines the cylinder head and exhaust manifold into one casting; this allows the creation of smaller internal passageways (reduced plenum volumes) that direct more exhaust gas energy into the turbo more quickly than a separate head and manifold assembly.

Source: Ford Motor Co.
