Goodyear debuts self-inflating tire technology for commercial trucks

Imagine if your tires just filled themselves every once in a while when they got low and needed a little pick-me-up.

Wouldn't that be great?

Well that technology isn't just around the corner.

Over the past year, researchers at The Goodyear Tire & Rubber Company have been working on a new Air Maintenance Technology (AMT) application that should aid in fuel savings, improve performance, and possibly eliminate the need for external inflation pressure intervention. The commercial application of Goodyear's Air Maintenance Technology made its debut in September at the 2012 Internationale Automobil-Ausstellung (IAA) Commercial Vehicle Show in Hanover, Germany.

Commercial trucks pose a different challenge for AMT than that of consumer vehicles, because their tires are larger, have higher inflation pressures, drive longer distances, and carry much heavier loads. Commercial tires operate at a higher air pressure, typically 105 psi for commercial tires vs. 32 psi for consumer tires. This is a much more challenging performance requirement for the pump system. Also, the life of a commercial truck tire is often extended by retreading. The commercial truck AMT system is being designed to perform after the retreading process.

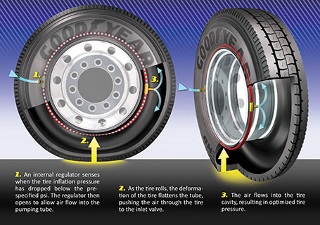

Here's how Goodyear says the inner workings function:

1. An internal regulator senses the tire inflation pressure has dropped below the pre-specified psi. The regulator then opens to allow air flow into the pumping tube.

2. As the tire rolls, the deformation of the tire flattens the tube, pushing the air through the tire to the inlet valve.

3. The air flows into the tire cavity, resulting in optimized tire pressure.

Learn more about how the system works using the weight of the vehicle and some clever valve design by watching the video below.

Engineers at Goodyear's Innovation Center in Akron, Ohio, are credited with the development of the commercial application of this concept and the supporting technology. Prototype tires have been produced in Goodyear's Topeka manufacturing plant in Kansas, and rigorous validation testing has confirmed that the AMT pumping mechanism works. An extensive fleet trial is planned to gather real-world information from customers in 2013.

A $1.5 million grant from The United States Department of Energy's Office (DOE) of Vehicle Technology is helping speed up research, development, and demonstration of the AMT system for commercial vehicle tires. A grant from the Luxembourg government for research and development will continue to help fund Goodyear's efforts in researching and developing the AMT system for consumer tires.

Source: Goodyear

Published October 2012
