Volvo Cars says tests of its flywheel technology confirm up to 25 percent fuel savings

Volvo Car Group says that it has completed extensive testing of its kinetic flywheel technology on public roads, and the results confirm that this is a light, cheap, and very eco-efficient solution.

"The testing of this complete experimental system for kinetic energy recovery was carried out during 2012. The results show that this technology, combined with a four-cylinder turbo engine, has the potential to reduce fuel consumption by up to 25 percent compared with a six-cylinder turbo engine at a comparable performance level," says Derek Crabb, vice president of Powertrain Engineering at Volvo Car Group. "Giving the driver an extra 80 horsepower, it makes a car with a four-cylinder engine accelerate like one with a six-cylinder unit."

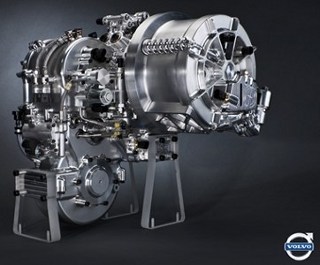

The complete experimental system for kinetic energy recovery (called KERS) is fitted to the rear axle. During retardation, the braking energy causes the flywheel to spin at up to 60,000 rpm.





The experimental system, known as Flywheel KERS (Kinetic Energy Recovery System), is fitted to the rear axle. During retardation, the braking energy causes the flywheel to spin at up to 60,000 revs per minute. When the car starts moving off again, the flywheel's rotation is transferred to the rear wheels via a specially designed transmission.

The combustion engine that drives the front wheels is switched off as soon as braking begins. The energy in the flywheel can then be used to accelerate the vehicle when it is time to move off again or to power the vehicle once it reaches cruising speed.

City traffic is where the tech is most effective
"The flywheel's stored energy is sufficient to power the car for short periods," says Crabb. "This has a major impact on fuel consumption. Our calculations indicate that it will be possible to turn off the combustion engine about half the time when driving according to the official New European Driving Cycle."

Since the flywheel is activated by braking, and the duration of the energy storage (that is to say, the length of time the flywheel spins) is limited, the technology is at its most effective during driving featuring repeated stops and starts. In other words, the fuel savings will be greatest when driving in busy urban traffic and during active driving.

If the energy in the flywheel is combined with the combustion engine's full capacity, it will give the car an extra 80 hp and, thanks to the swift torque build-up, this translates into rapid acceleration, cutting Volvo's 0 to 100 km/h figures by seconds. The experimental car, a Volvo S60, accelerates from 0 to 100 km/h in 5.5 sec.

Carbon fiber one key
Flywheel propulsion assistance was tested in a Volvo 260 back in the 1980s, and flywheels made of steel have been evaluated by various manufacturers in recent times. However, since a unit made of steel is large and heavy and has rather limited rotational capacity, it is not really a viable option.

The flywheel that Volvo Cars used in the experimental system is made of carbon fiber. It weighs about 6 kg (13.2 lb) and has a diameter of 20 cm (7.9 in.). The carbon fiber wheel spins in a vacuum to minimize frictional losses.

"We are the first manufacturer that has applied flywheel technology to the rear axle of a car fitted with a combustion engine driving the front wheels," says Crabb. "The next step after completing these successful tests is to evaluate how the technology can be implemented in our upcoming car models."

Source: Volvo Cars

Published May 2013
