ABB demonstrates technology to flash-charge electric bus in 15 sec

Power and automation juggernaut ABB has developed a new technology that will help to power the world's first high-capacity flash-charging electric bus system.

The project was announced at the 60th congress of the International Association of Public Transport (UTIP) in Geneva in May 2013. The UTIP is working together with Geneva's public transport company (TGP), the Office for the Promotion of Industries and Technologies (OPI), and the Geneva power utility SIG on the TOSA electric bus system pilot project.

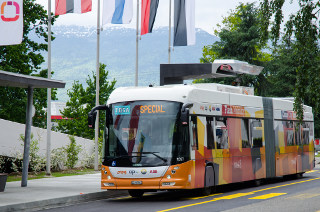

The new boost-charging technology will be deployed for the first time on a large-capacity electric bus that carries as many as 135 passengers. The bus will be charged directly at selected stops with a 15-sec energy boost while the passengers enter and leave the bus, based on a new type of automatic flash-charging mechanism. The pilot project runs between Geneva airport and the city's international exhibition center, Palexpo.

"Through flash charging, we are able to pilot a new generation of electric buses for urban mass transport that no longer relies on overhead lines," said Claes Rytoft, ABB's acting chief technology officer. "This project will pave the way for switching to more flexible, cost-effective public transport infrastructure while reducing pollution and noise."

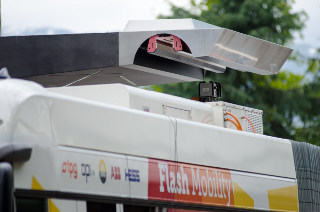

TOSA (Trolleybus Optimisation Systeme Alimentation) is a zero-carbon-emission solution, because the electricity used comes entirely from clean hydro power. The charging time is so quick that it does not interfere with the bus schedule. It does not need overhead lines, which provides greater route flexibility. The system uses a laser-controlled moving arm that connects to an overhead receptacle for charging at bus shelters, instead of the usual trolley poles to overhead lines.

The flash-charging technology and the onboard traction equipment to be used in this project were developed by ABB and optimized for high-frequency bus routes in key urban areas, carrying large numbers of passengers at peak times. Onboard batteries can be charged in 15 sec with a 400-kW boost at selected stops. At the end of the bus line, a 3- to 4-min. boost enables the full recharge of the batteries. Thanks to an innovative electrical drive system, energy from the roof-mounted charging equipment can be stored in compact batteries, along with the vehicle's braking energy, powering both the bus and its auxiliary services, such as interior lighting.

Source: ABB

Published August 2013
