Alcoa rolls out world's lightest heavy-duty truck wheel

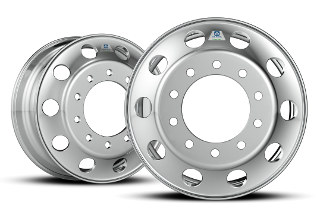

Alcoa has rolled out the world's lightest heavy-duty truck wheel. This latest Alcoa innovation, the Ultra ONE, aims to help trucks shed pounds for increased payload and fuel efficiency.

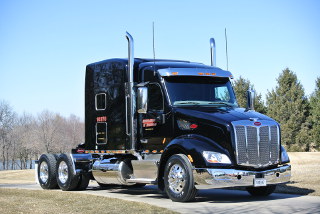

Unveiled at the Mid-America Trucking show in Louisville, KY, Alcoa's new 40-lb wheel is 47 percent lighter than steel wheels of the same size. The Ultra ONE can help save up to 1,400 lb per rig, enabling fleets to carry more goods while meeting stringent federal emissions regulations. Underscoring the importance of lightweighting to the industry, one of America's largest flatbed carriers, TMC Transportation, is converting its fleet to the Ultra ONE starting in 2014.

"Our new innovation is heavy-duty without the 'heavy,' and it looks great, too," said Tim Myers, President, Alcoa Wheel and Transportation Products. "Alcoa's unique mix of manufacturing, technology, and lightweight metals expertise enabled this breakthrough. Major fleets, such as TMC Transportation, are already lining up to take advantage of it."

Fleets have increasingly converted to aluminum wheels that offset the weight of necessary pollution-control equipment used to meet federal emissions regulations. Lighter wheels also improve fuel economy, making up for rising fuel prices and helping move goods in a cleaner way. And if trucks burn less fuel, they emit fewer greenhouse gases. Replacing steel wheels with aluminum wheels on an 18-wheeler offsets the annual carbon footprint of an average family of four in America. In addition, Alcoa's aluminum wheels are six times brighter than competitors' wheels, giving them strong aesthetic appeal, and because they are corrosion resistant and do not require stripping and repainting, they have lower operators' maintenance and operating costs.

To take 5 lb out of its lightest heavy-duty truck wheel, Alcoa's experts at the Alcoa Technical Center -- the world's largest light metals research center -- invented a new alloy, the patent-pending MagnaForce alloy. It is on average 17 percent stronger than the industry standard, Alcoa's 6061 alloy, in similar applications.

Source: Alcoa Wheel and Transportation Products

Published April 2014
