Hitachi 45-mph elevator will be world's fastest: 95 floors in 43 sec

Ready for a 45-mph thrill ride to the 95th floor in 43 seconds? Well, even if you're not, the technology is still on its way.

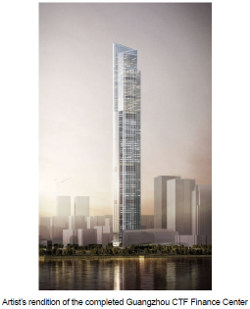

Hitachi, Ltd. and Hitachi Elevator Co. recently announced that they will provide the world's fastest ultra-high-speed elevators to the Guangzhou CTF Finance Centre, a mixed-use skyscraper currently under construction in Guangzhou, China. The building is slated to open in 2016.

The two 1,200-m/min ultra-high-speed elevators that Hitachi will deliver will feature both the drive power needed to attain the world's fastest speed and also reliable control capabilities. The elevators will travel a shaft height of 440 m from the 1st to 95th floor in approximately 43 sec.

Hitachi will provide both high-speed elevator operation and a safe, comfortable ride by using braking equipment and a governor that safely bring the elevators to a stop, as well as technologies to prevent lateral vibration and to reduce the sensation of ear blockage caused by air pressure differences. Hitachi will install a total of 95 elevators at Guangzhou CTF Finance Centre. Besides the pair of ultra-high-speed units, the building will also house 28 double-deck elevators; 13 ultra-high-speed elevators with a speed of 600 m/min; and 52 medium- and low-speed elevators.

Technological highlights of the elevator development at the Guangzhou CTF Finance Centre include:

Drive and control technologies to attain world's fastest speed of 1,200 m/min

• Developed a permanent magnet synchronous motor that achieves both a thin profile and the high output needed to attain a speed of 1,200 m/min.
• Successfully developed a compact traction machine by lightening the load on the traction machine, through reducing the weight of the system by reducing the main rope diameter while increasing the rope's strength.
• Installed inverters that possess one of the world's highest capacities for use in elevators to control the output of the large-capacity motor. At the same time, Hitachi has successfully conserved control panel space.

Safety features supporting ultra-high-speed elevator operation

• Developed brake equipment using braking materials with outstanding heat resistance to safely stop the elevator car in the unlikely event that an elevator malfunction is detected during ultra-high-speed operation.
• Thoroughly ensure safety and save space by using a single governor that can control different rated speeds during elevator ascent and descent.

Elevators can be used comfortably with safety even over long travel

• Installed active guide rollers that detect minute warping in the guide rails and lateral vibration due to wind pressure, in the four corners (top and bottom, left and right corners) of the elevator car. This gives elevator passengers a comfortable ride even during high-speed operation.
• Reduced the sensation of ear blockage by developing Hitachi's proprietary air pressure adjustment technology, which reduces the changes in air pressure inside the elevator car that would otherwise be caused by the vertical movement through long travel.

Hitachi has been a leader in developing elevator products that satisfy the demands of increasingly taller and larger buildings over the years. Notably, in 1968, Hitachi developed Japan's fastest elevator at the time, with a speed of 300 m/min. The elevator was installed in the Kasumigaseki Building, Japan's first skyscraper building. In 2010, Hitachi started operating the 213-m G1TOWER, the world's tallest elevator research tower. Hitachi has been conducting many different field trials at this site needed to support growing global demand for high-speed, large-capacity elevators, along with pursuing technology development for elevator products that satisfy safety, comfort, and environmental considerations.

Source: Hitachi

Published May 2014
