Continental supplies world's first turbocharger with aluminum turbine housing in cars

The global development trend toward turbocharging for gasoline engines is in full swing in a bid to provide smaller cubic capacity and lower fuel consumption while offering the same, if not better, performance. International automotive supplier Continental is supporting this trend and setting milestones with its pioneering and innovative turbocharger technology.

The first Continental turbocharger went into series production in a highly efficient, multi-award-winning 1.0l engine in 2011. The company is now adding another chapter to this success story with a technological world premier: Continental's powertrain developers have launched series production of the first car turbocharger with an aluminum turbine housing. Integration of the unit in the three-cylinder gasoline engine (1.5l of cubic capacity and 100 kW of power) for the standard MINI Hardtop has been ongoing since spring 2014.

"Aluminum in a turbocharger designed for cars is a real milestone," says Wolfgang Breuer, Head of the Engine Systems Business Unit of Continental's Powertrain Division. "With this lightweight material, we are saving nearly 30 percent of weight compared to a conventional turbocharger, while simultaneously reducing costs and achieving system benefits."

"It's not just the aluminum that makes the turbocharger special; it was also developed from being a typical add-on component to an integral part of the engine," says Udo Schwerdel, Head of Continental's Turbocharger Product Line, Engine Systems, Powertrain Division. "In order to meet the requirements placed on the unit and its integration in the cylinder head, we worked closely with the BMW Group starting from the simulation phase -- an indication of trust that we greatly appreciate."

Aluminum in the turbocharger = less weight, less fuel consumption

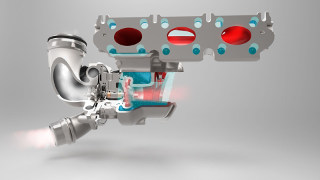

Full-load operation can be enough to make common turbocharger constructions with a steel housing glow red all over. However, the aluminum turbine housing keeps a cool head.

"The double-walled aluminum housing surrounds the hottest area with a cooling water jacket," says Schwerdel. The coolant flowing through this jacket ensures that the external housing surface does not get hotter than 120 C (248 F) and the internal temperature does not exceed 350 C (662 F), which Schwerdel explains has not one, but two benefits: "First, much less effort is required to protect neighboring components from the heat. Second, cooling of the exhaust flow reduces the thermal load on the catalytic converter, meaning it hardly ages at all."

At the same time, the dynamic response of the electric actuator at the wastegate ensures that the catalytic converter heats up quickly.

In keeping with the modular principle given by the customer, the turbocharger is tightly integrated in the engine (it is a fixed component of the exhaust manifold), but Continental turbochargers with a steel housing can also be attached to the same base engine using the interface on the cylinder head. The car manufacturer is using this option for high-performance engines as well as vehicles for export to hot countries. The bearing housing is cooled from inside the turbocharger for steel variants, while cooling from outside is sufficient for aluminum turbochargers.

In the MINI, 1.2 kg (2.6 lb) of weight is saved per aluminum turbocharger. Since reduced weight also means reduced fuel consumption, the lightweight material supports the fuel consumption and emission targets of the automotive industry. Despite the additional expenditure for the water cooling, aluminum turbochargers are also more affordable for automotive manufacturers.

"High-temperature-resistant materials such as nickel-base alloys drive up prices for turbochargers with steel housings," says Schwerdel, "whereas our aluminum alloy is a cost-effective material."

Source: Continental

Published September 2014
