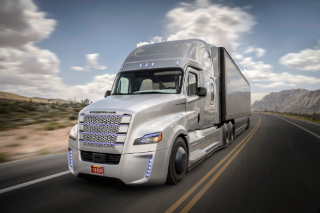

Freightliner Inspiration Truck gets its autonomous vehicle license from Nevada DMV

At a ceremony at Las Vegas Motor Speedway on May 5, Nevada Gov. Brian Sandoval officially granted the first license for an autonomous commercial truck to operate on an open public highway in the United States to Daimler Trucks North America (DTNA).

At the event, hosted by DTNA President & CEO Martin Daum, Gov. Sandoval took part in the inaugural trip of the Freightliner Inspiration Truck in autonomous mode with Dr. Wolfgang Bernhard, Member of the Board of Management of Daimler AG Daimler Trucks & Buses, at the controls.

Developed by engineers at DTNA, the truck holds the promise of unlocking autonomous vehicle advancements that could reduce accidents, improve fuel consumption, cut highway congestion, and safeguard the environment.

The Freightliner Inspiration Truck underwent extensive testing before the Nevada Department of Motor Vehicles granted it a license to operate on public roads in the state. Some of the core autonomous vehicle systems in the concept vehicle are already successfully deployed in the current Freightliner Cascadia Evolution.

The Freightliner Inspiration Truck is equipped with Highway Pilot sensors, and its computer hardware is based upon a series production Freightliner Cascadia Evolution, fully certified to meet all U.S. Federal Motor Vehicle Safety Standards.

The Highway Pilot links together a sophisticated set of camera technology and radar systems with lane stability, collision avoidance, speed control, braking, steering, and other monitoring systems. In total, two trucks with this equipment exist.

The Freightliner Inspiration Truck operates on highways at what the National Highway Traffic Safety Administration defines as Level 3 of autonomous vehicle capabilities, enabling the driver to cede full control of all safety-critical functions under certain traffic or environmental conditions. The autonomous vehicle system is responsible for maintaining legal speed, staying in the selected lane, keeping a safe braking distance from other vehicles, and slowing or stopping the vehicle based on traffic and road conditions. The vehicle monitors changes in conditions that require transition back to driver control when necessary in highway settings. The driver is in control of the vehicle for exiting the highway, on local roads, and in docking for making deliveries.

Source: Daimler

Published May 2015
