5 ways to improve part moldability with draft

Apply proper draft early and often to injection-molded parts to save production time and money.

By Gus Breiland, Customer Service Engineering Manager, Proto Labs

When developing parts for plastic injection molding, applying draft (or a taper) to the faces of the part is critical to improving the moldability of your part. Without it, parts run the risk of poor cosmetic finishes and may bend, break, or warp due to molding stresses caused by the plastic cooling. Equally important, an absence of draft may prevent parts from ejecting from the mold, damaging not only the parts, but possibly the mold itself -- a costly and time-consuming detour.

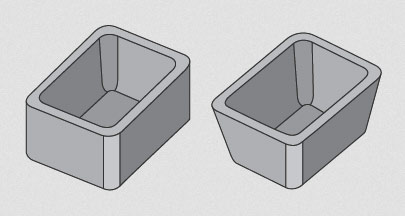

An undrafted (left) versus drafted (right) cube.



Ignoring draft early in the design process is a common mistake that occurs when prototyping with 3D printing and CNC machining processes where draft is not required. Due to the layer-by-layer method in which 3D-printed parts are built, nearly any design can be produced with limited concern for moldability. The same can be said for machined parts, as part ejection is a purely a molding consideration.

But if a prototype design will eventually move to injection molding, it is befitting to design draft into parts from the very beginning. Draft may alter the form and fit of a part during assembly and its overall aesthetic, so designing in draft, even when it's not technically needed, can help you avoid any surprises such as costly redesigns and additional prototype development.

Design for the future need, not the current need. When the part is ready to move from 3D printing or machining into injection molding with draft already integrated, design is accelerated and production can begin sooner. Don't print or machine yourself into a corner by manufacturing a product that needs more design work before it can be molded.

The truth is, there's no single draft angle that can be applied to all part designs. Factors like wall thickness, material selection, ejection, shrink rates, finish/texture, wall depth, and manufacturing capabilities all come into to play. But fear not, there are some simple rules that can be followed that can help.

When designing a part, apply as much draft angle as possible -- a general rule of thumb is 1 degree of draft per 1 inch of cavity depth, but that can change with the aforementioned factors. Try following these general guidelines:

  • 0.5 degrees on all vertical faces is strongly advised.
  • 1 to 2 degrees works very well in most situations.
  • 3 degrees is minimum for a shutoff (metal sliding on metal).
  • 3 degrees is required for light texture (PM-T1).
  • 5 or more degrees is required for heavy texture (PM-T2).

What can be done when draft may negatively impact part performance? Parts can be designed with 0.5 degrees of draft, or even as little as 0.25 degrees, which is still an improvement over zero draft. Again, the smallest degree of draft that is possible is dependent on material, part geometry and manufacturer and should be discussed with the manufacturer before finalizing a part with very limited draft.

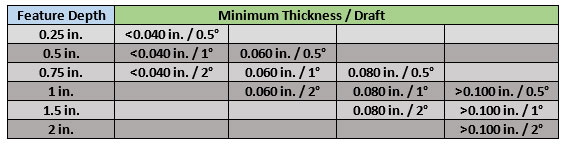

Draft angles based on cavity depth and feature thickness (width of rib being machined). While conservative numbers are used to explain the relationship between wall thickness, depth, and draft, using this chart can drastically improve moldability.





Many low-volume injection tools are manufactured from aluminum and use CNC machining to mill nearly all of the features in the core and cavities of the mold. With fewer manufactured parts and inserts than a steel production mold, additional draft and wall thickness may be required to produce the same parts with an aluminum mold due to the diameter, length, and draft of the end mills that are used to create them. The increase in draft and thickness typically won't affect the parts, and it may actually improve the performance of the eventual production mold.

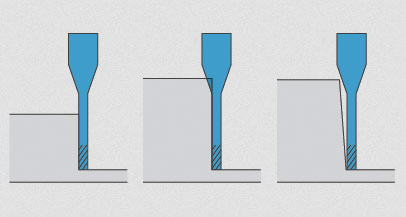

An undrafted wall with proper tool clearance (left), undrafted tall wall without proper tool clearance (middle), versus a drafted wall that provides adequate clearance for the endmill (right).





How does draft affect parts finish? Simply put, with a lack of mold draft, the part would drag on the molded surface while the mold opens and ejects the parts, creating surface finish scratches. Since all thermoplastics shrink while they cool in the mold, a massive amount of surface tension is created, preventing the part from releasing cleanly during ejection. This tension creates small scratches in the polished surface, and it's even worse for textured surfaces -- if draft is missing.

Texture is applied many different ways, but they all create micro undercuts from pitting the mold surface. The texture on the mold walls would lock the part into place, if it weren't for our old friend, draft. By applying a degree of draft, the part is allowed to move a short distance before the mold shrink is able to clear the micro undercuts, and ultimately the concern of mold drag or scratches on the part is minimized. On finishes, Proto Labs requires a minimum of 3 degrees of draft for a light bead-blast finish (PM-T1) and 5 degrees of draft for a medium bead-blast finish (PM-T2).

Proto Labs can apply seven different finishes to thermoplastic molds that range from unfinished to highly polished and even textured surfaces.

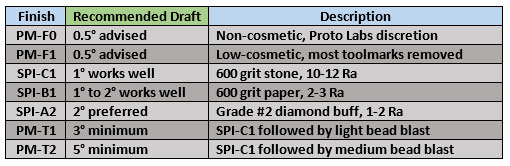

Available surface finishes at Proto Labs.



Video: More on available finishes.

Adding draft to an enclosure can create issues if it isn't applied correctly. When applying draft to the inside and outside walls, design these walls parallel to each other to avoid deep ribs in the mold that make venting, ejection, mold finishing, and manufacturing more difficult. Consider a core-cavity approach to design, as this opens up the mold cavity and core for polishing, accelerates manufacturing speed, and, in general, brings added ease during the molding process.

The deep-rib approach (left) shows a box designed with walls as ribs, resulting in a higher cost to machine and polish the mold cavity. With the core-cavity approach (right), the box allows features to be milled with a bigger, faster cutter, and is easier and faster to polish. This saves customers time and money.





One of the most valuable tools available at Proto Labs is our free design for manufacturability (DFM) analysis that is provided on every 3D CAD model that is uploaded to our site. Within a few hours, you'll receive a quote that highlights detailed sections of the model in need of draft angles, and even offers suggested changes to improve the draft on those sections. It's a good quality control check to help avoid future moldability issues.

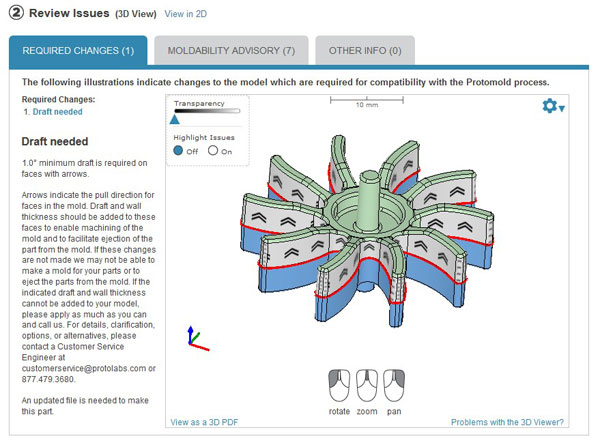

Chevron arrows indicate the direction and surfaces that need draft applied to them. The degree of draft is explained on the left side of the image while the red lines and blue and green highlights indicate the mold parting line and mold sides.





Upload a 3D CAD design for a complete analysis at protolabs.com. For questions on draft and technical concerns, please contact one of our knowledgeable customer service engineers at customerservice@protolabs.com or 877.479.3680.
