Space: Specialized voice coil actuator onboard NASA spacecraft to asteroid

BEI Kimco moving magnet VCA for the OSIRIS-Rex mission.

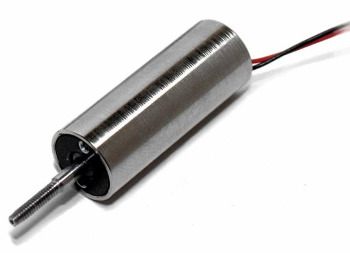

A customized moving magnet voice coil actuator (VCA) from BEI Kimco, a brand of Sensata Technologies, is a part of NASA's first asteroid sampling mission that could revolutionize our understanding of the early solar system.

Voice coil actuators (VCAs) are direct-drive, limited-motion devices that use a permanent magnet field and coil winding (conductor) to produce a force that is proportional to the current applied to the coil. These non-commutated electromagnet devices are used in linear and rotary motion applications that require linear force or torque output, and high acceleration or high-frequency oscillation.

BEI Kimco designed the special VCA to meet the harsh requirements for a spectrometer moving-mirror application on the Origins-Spectral Interpretation Resource Identification Security Regolith Explorer (OSIRIS-Rex) spacecraft. The OSIRIS-Rex launched Sept. 8, 2016, from Cape Canaveral Air Force Station for its mission to rendezvous with the asteroid named Bennu in 2018 and return samples to Earth in 2023.

Most linear voice coil actuators use a "moving coil" design, meaning that the coil itself moves while the magnets remain stationary within the assembly. However, there are times when using a "moving magnet" design, which is the inverse of a moving coil, would be beneficial. Some of the advantages include: increased heat dissipation and an absence of moving lead wires.

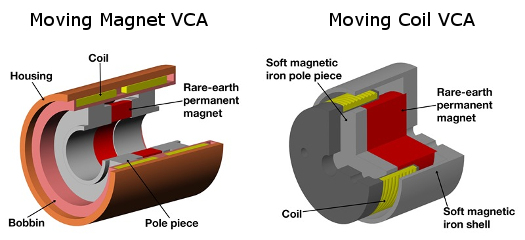

Fig. 1: The moving magnet voice coil actuator (left) keeps the coil fixed so that the heat generated by the coil assembly can be easily managed compared to the moving coil-type actuator (right).





For this space mission, a customized BEI Kimco moving magnet VCA was attached to, and will position, the moving mirror assembly of the OSIRIS-Rex Thermal Emission Spectrometer (OTES). As the spacecraft approaches Bennu, the spectrometer scans the surface so that the material can be analyzed for different parameters.

OSIRIS-REx will return samples from the Bennu asteroid to Earth.



Bennu orbits the sun between Venus and Mars. It crosses Earth's orbit sometimes and comes close to us every 6 years. In 2135, the asteroid is predicted to come so close to Earth that it will be between Earth and our moon. That encounter may well change the orbit of the asteroid, making it more difficult to predict how close it will come in the future.

OSIRIS-REx will spend two years surveying the asteroid, which is a boulder about as tall as the Empire State Building, in unprecedented detail. Then, in a robotic first, the spacecraft will reach out its 11-ft mechanical arm and take a sample from the asteroid. Though the sample will be small (only a couple of pounds at most) it should provide a time capsule of sorts, recording our solar system's creation. With the sample stored safely, the spacecraft will speed away from the asteroid on a path back to Earth in March 2021, if all goes according to plan. The samples are scheduled to arrive back at our planet in September 2023, when the capsule that contains them is ejected and sent to the Earth's surface.

The BEI Kimco VCA was uniquely manufactured to custom requirements for high reliability and fail-safe operation. Redundant technology, low outgassing, and high precision for exact motion control positioning were all key requirements to the actuator design. It was also critical to stay within the specific size, weight, and power limits. This was achieved in a housing measuring approximately 2 in. in diameter by 3 in. long.

To meet the requirements for near-zero emissions, BEI Kimco developed the actuator minimizing the use of adhesives or inks and using only approved materials. This design primarily uses mechanical assembly methods within a clean manufacturing process, thereby eliminating substances that could cause outgassing. High-energy Neodymium Iron Boron (NeFeB) magnets were incorporated to provide superior operating efficiencies.

In recognition of the team that worked on the OTES project, a signature plaque that includes individuals as well as BEI Kimco and other suppliers was attached to the OTES before it left our planet. An identical plaque was presented to BEI Kimco and each company or person included on the plaque.

For more information on OSIRIS-Rex, visit:

For information on the BEI Kimco actuator, contact BEI Kimco at or

Source: BEI Kimco
