NASA engineers burst world's largest rocket fuel tank
By Tracy McMahan, Marshall Space Flight Center

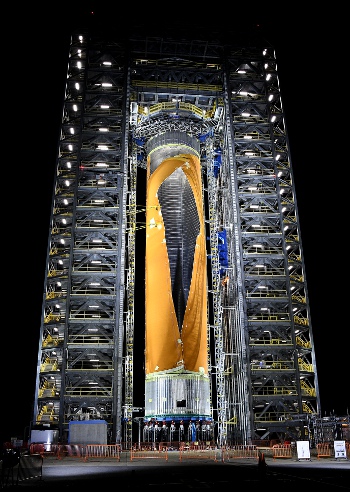

The Dec. 5 test pushed the tank to its limits to see how much force it would take to cause the tank's structure to fail. This image shows the resultant buckling of the structure when the tank failed after exposure to more than 260 percent of expected flight loads over 5 hours. [Credits: NASA/Dennis Olive]
On Dec. 5, engineers at NASA's Marshall Space Flight Center in Huntsville, AL, deliberately pushed the world's largest rocket fuel tank beyond its design limits to really understand its breaking point.
The test version of the Space Launch System (SLS) rocket's liquid hydrogen tank withstood more than 260 percent of expected flight loads over five hours before engineers detected a buckling point, which then ruptured. Engineers concluded the test at approximately 11 p.m.
"We purposely took this tank to its extreme limits and broke it because pushing systems to the point of failure gives us additional data to help us build rockets intelligently," said Neil Otte, chief engineer of the SLS Stages Office at Marshall. "We will be flying the Space Launch System for decades to come, and breaking the propellant tank today will help us safely and efficiently evolve the SLS rocket as our desired missions evolve."
The test version of the tank aced earlier tests, withstanding forces expected at engine thrust levels planned for Artemis lunar missions, showing no signs of cracks, buckling, or breaking. The test on Dec. 5 -- conducted using a combination of gaseous nitrogen for pressurization and hydraulics for loads -- pushed the tank to the limits by exposing it to higher forces that caused it to break as engineers predicted. Earlier tests at Marshall certified the tank for both the current version of the SLS -- called Block 1, which will use an upper stage called the Interim Cryogenic Propulsion Stage -- and the Block 1B version that will replace the ICPS with the more powerful Exploration Upper Stage.
"This final tank test marks the largest-ever controlled test-to-failure of a NASA rocket stage pressurized tank," said Mike Nichols, Marshall's lead test engineer for the tank. This data will benefit all aerospace companies designing rocket tanks."
For all the tests, NASA and Boeing engineers simulated liftoff and flight stresses on a test version of the SLS liquid hydrogen tank that is structurally identical to the flight tank. Throughout the tests in Marshall's 215-ft-tall test stand, they used large hydraulic pistons to deliver millions of pounds of punishing compression, tension, and bending forces on the robust test tank.
The test tank was fitted with thousands of sensors to measure stress, pressure, and temperature, while high-speed cameras and microphones captured every moment to identify buckling or cracking in the cylindrical tank wall.
"The initial tank buckling failure occurred at the same relative location as predicted by the Boeing analysis team and initiated within 3 percent of the predicted failure load," said Luke Denney, qualification test manager for Boeing's Test & Evaluation Group. "The accuracy of these predictions against real-life testing validates our structural models and provides high confidence in the tank design."
VIDEO: Engineers at NASA's Marshall Space Flight Center tested NASA's Space Launch System liquid hydrogen test article tank to failure. The tank withstood more than 260 percent of expected flight loads before buckling and rupturing. The test version of the tank aced earlier tests, withstanding forces expected at engine thrust levels planned for Artemis lunar missions, showing no signs of cracks, buckling, or breaking. [Credits: NASA]
Teams at Michoud are wrapping up functional testing of the assembled SLS core stage for the Artemis I mission and already are building the core stage for the Artemis II mission. The 212-ft-tall core stage is the largest, most complex rocket stage NASA has built since the Saturn V stages that powered the Apollo missions to the Moon.
"We are happy that NASA's tests with the core stage structural test article will contribute not only to Space Launch System flights but also to the design of future rocket propellant tanks," said Julie Bassler, manager of the SLS Stages Office.
SLS is the only rocket that can send Orion, astronauts, and supplies to the Moon on a single mission. SLS, Orion, and the Gateway in orbit around the Moon are NASA's backbone for deep space exploration and the Artemis program, which will send the first woman and next man to the lunar surface by 2024.
