HELI-CAL® U-Joints ... A New Angle on Universal U-Joints

Universal joints (also called U-joints) transmit rotating power through angles that are much larger than those possible via flexible couplings. No wonder U-joints are ubiquitous power-transmission devices used in an array of industrial machines, medical, aerospace, and off-highway applications.

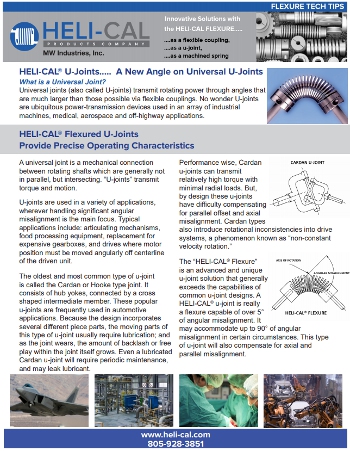

Click on the image above to download "HELI-CAL U-Joints ... A New Angle on Universal U-Joints." [No registration required.]



The "HELI-CAL® Flexure" is an advanced and unique u-joint solution that generally exceeds the capabilities of common u-joint designs. A HELI-CAL u-joint is really a flexure capable of over 5° of angular misalignment. It may accommodate up to 90° of angular misalignment in certain circumstances. This type of u-joint will also compensate for axial and parallel misalignment.

Download Helical Products' informative Flexure Tech Tip PDF (no registration required) to learn the full benefits of this impressive connection technology.

Learn even more on the Helical Products website.
