Propeller designs for NASA's first all-electric X-plane tested in Langley wind tunnel

Advanced designs that will propel NASA's first all-electric X-plane, the X-57 Maxwell, to flight recently underwent wind tunnel testing at Langley Research Center in Hampton, VA.

The tests, which took place in the Langley Low-Speed Aeroacoustic Wind Tunnel, were conducted to gather valuable operational and performance data for flight conditions. The full-scale propeller assemblies were provided by Empirical Systems Aerospace, or ESAero, of San Luis Obispo, CA.

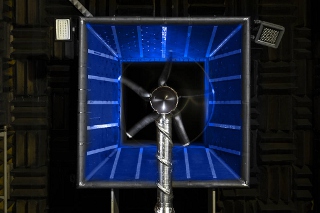

Propeller testing took place at the Langley Low-Speed Aeroacoustic Wind Tunnel. [Photo credit: NASA]





NASA will install 12 electric high-lift motors and propellers into the final configuration of X-57, called Modification IV, or Mod IV.

Positioned along the leading edge of X-57's cruise-efficient wing, these motors and propellers will be utilized first during takeoff, providing lift augmentation to the X-Plane at low aircraft speeds. Once X-57 goes into cruise mode, the motors will deactivate, and the propeller blades will fold inward to prevent creating additional drag while two larger electric cruise motors remain active on the wing tips. Then, when it's time to land, the smaller high-lift motors will reactivate, unfolding the propeller blades to create the appropriate lift for landing at approach speed.

This artist's concept image shows NASA's first all-electric X-plane, the X-57 Maxwell, in its final configuration flying in cruise mode over NASA's Armstrong Flight Research Center in Edwards, CA. [Credits: NASA Langley/Advanced Concepts Lab, AMA, Inc.]









NASA's primary goal for X-57 is to share the electric-propulsion design, lessons learned, and airworthiness process with regulators, as new electric aircraft markets begin to emerge.

The project is also using a "design driver" -- a technical challenge for the all-electric design to drive lessons learned -- that includes the goal of a 500% increase in high-speed cruise efficiency, zero in-flight carbon emissions, and flight that is quieter for communities on the ground.

The wind tunnel tests took part over two weeks, exposing the propeller hardware to wind speeds from zero to over 90 knots, with 14 hours of powered propeller operation.

Significant progress is also being made on the electric cruise motors that will power X-57 in flight and the future high-aspect ratio wing that will fly on the aircraft's final configuration.

X-57, modified from a Tecnam P2006T airplane, is currently in its first of three configurations as an all-electric aircraft, called Modification II, or Mod II. While this configuration features the replacement of the vehicle's standard combustion, 100-hp Rotax 912S engines with 60-kW electric cruise motors, X-57's test flights in this phase will be flown using the vehicle's standard wing.

The all-electric cruise motors for NASA's X-57 Maxwell plane are being run through power and endurance testing at ESAero. The lessons learned from this project will help in the effort to set airworthiness standards for electric aircraft. [Credits: Empirical Systems Aerospace]









The following phase, Mod III, will see this replaced with the high-aspect ratio wing, greatly reducing overall vehicle area, and relocating the cruise motors out to the wingtips, before the aircraft flies in its final Mod IV configuration, which will feature the addition of the 12 smaller high-lift motors along the wing's leading edge to be activated during takeoff and landing.

"All three mods of X-57 will utilize the same cruise motors. We've taken those cruise motors and we're putting them through functionality tests, acceptance tests, and qualification tests to ensure their airworthiness for the X-57 vehicle," said Trevor Foster, ESAero Vice President of Operations. "As part of the NASA airworthiness process, these are the verification and validation steps to reduce risks and increase the safety and reliability of the components on the vehicle."

These steps include endurance and high power testing of the cruise motors and cruise motor controllers, with a focus on monitoring overall system efficiency. To do this, engineers use a dynamometer to measure current and voltage, taking in data at a rate of 2 million times per sec.

Endurance testing, meanwhile, involves a wider spectrum of activities, according to Colin Wilson, ESAero cruise motor acceptance and qualification lead.

"The endurance testing involves everything from doing small checks and low power checks, making sure that the motor spins and communicates and gives us the information we need, all the way up to running full mission profiles, and even taking it beyond mission profiles, where you're really pushing the limits of temperature and power," said Wilson. "So far, the motors and controllers have performed exceedingly well, and we're in the process of getting them to perform even better."

While X-57 will always fly with a pair of cruise motors in each configuration, five motors in total have been built for the project. One was disassembled and used for evaluation of the unit's construction as a safety measure, two will be used as flight motors on the X-57 aircraft, and the other two will be used for envelope expansion testing, and will act as spares to the flight motors.

Source: NASA

Published November 2020
