New salt battery design may help electric cars go the extra mile

Using salt as a key ingredient, Chinese and British researchers have designed a new type of rechargeable battery that could accelerate the shift to greener, electric transport on our roads.

Many electric vehicles (EVs) are powered by rechargeable lithium-ion batteries, but they can lose energy and power over time. Under certain conditions, such batteries can also overheat while working or charging, which can also degrade battery life and reduce miles per charge.

To solve these issues, the University of Nottingham in the UK is collaborating with six scientific research institutes across China to develop an innovative and affordable energy store with the combined performance merits of a solid-oxide fuel cell and a metal-air battery. The new battery could significantly extend the range of electric vehicles while being fully recyclable, environmentally friendly, low cost, and safe.

A solid-oxide fuel cell converts hydrogen and oxygen into electricity as a result of a chemical reaction. While they are highly efficient at extracting energy from a fuel, durable, low cost. and greener to produce, they are not rechargeable. Meanwhile, metal-air batteries are electrochemical cells that use a cheap metal such as iron and the oxygen present in air to generate electricity. During charging, they emit only oxygen into the atmosphere. Although not very durable, these high-energy-dense batteries are rechargeable and can store and discharge as much electricity as lithium-ion batteries -- but much more safely and cheaply.

In the early research phases, the research team explored a high-temperature iron-air battery design that used molten salt as a type of electrolyte -- activated by heat -- for electrical conductivity. Cheap and inflammable, molten salts help to give a battery impressive energy storage and power capability and a lengthy lifecycle.

However, molten salts also possess adverse characteristics. "In extreme heat, molten salt can be aggressively corrosive, volatile, and evaporate or leak," said University of Nottingham study lead Professor George Chen, "which is challenging to the safety and stability of battery design. There was an urgent need to fine-tune these electrolyte characteristics for better battery performance and to enable its future use in electric transport."

The researchers have now successfully improved the technology by turning the molten salt into soft-solid salt, using solid oxide nano-powders. Professor Jianqiang Wang from the Shanghai Institute of Applied Physics, Chinese Academy of Sciences, who is leading this collaboration project, has predicted that this quasi-solid-state (QSS) electrolyte is suitable for metal-air batteries that operate at 800 C, as it suppresses the evaporation and fluidity of the molten salts that can occur at such high operating temperatures.

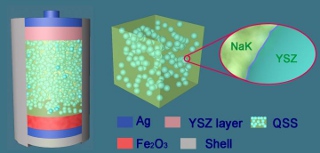

Quasi-solid-state (QSS) molten salt electrolyte and the structure of QSS molten salt iron air battery. [Credit: Shanghai Institute of Applied Physics]









Project collaborator Dr. Cheng Peng, also from the Shanghai Institute of Applied Physics, Chinese Academy of Sciences, explained a unique and useful design aspect of this experimental research. He said the quasi-solidification has been achieved using nanotechnology to construct a flexibly connected network of solid oxide particles that act as a structural barrier that locks in the molten salt electrolytes while still allowing them to safely conduct electricity in extreme heat.

Professor Chen, who is leading a molten salt electrolysis laboratory in Nottingham, hopes the team's "encouraging results" will help to establish a simpler and more efficient approach to designing low-cost and high-performance molten salt metal-air batteries with high stability and safety.

"The modified molten salt iron-oxygen battery has great potential applications in new markets, including electric transport and renewable energy, which require innovative storage solutions in our homes and at grid-level," Chen said. "The battery is also, in principle, capable of storing solar heat as well as electricity, which is highly desirable for both domestic and industrial energy needs. Molten salts are currently used at large scale in Spain and China to capture and store solar heat that is then converted to electricity. Our molten salt metal-air battery does the two jobs in one device."

The full article outlining the results, "Quasi-solid-state electrolyte for rechargeable high-temperature molten salt iron-air battery," is published in the journal Energy Storage Materials.

Source: University of Nottingham

Published February 2021
