World's first heavy-lift unmanned helicopter takes maiden flight

A company called Kaman Air Vehicles based in Bloomfield, CT, is busy testing the world's first unmanned heavy-lift helicopter. Called the K-MAX TITAN, the copter is designed to lift 6,000 lb at sea level in hot and high conditions.

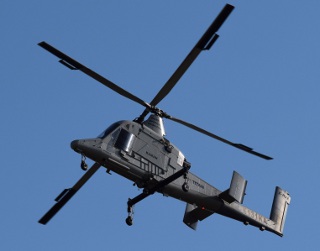

Kaman Air Vehicles' K-MAX TITAN on first flight.





Kaman already makes K-MAX medium-lift multi-mission helicopters that can handle 4,500-lb loads, and the copters have been doing real work. According to the company, an early version of its K-MAX supported U.S. Marines operations in Afghanistan, and "over the 33-month deployment, two K-MAX unmanned systems delivered 4.5 million lb of cargo to Marines at remote outposts in the combat zone."

The single-engine K-MAX burns just 82 gallons of fuel per hour during lift operations, which is a little over half of what some heavy-lift copters use when lifting. It can be flown autonomously or from its single pilot seat. An external instrument panel is strategically located outside of the cockpit of the aircraft to enable pilots to actively monitor performance during load operations.

The K-MAX is a rugged, low-maintenance aircraft that features a counter-rotating rotor system with servo-flap control (no hydraulics). It is optimized for repetitive external load operations. Applications beyond military use include firefighting, logging, power line construction, emergency response, and disaster relief.

Kaman is working with the U.S. Marine Corps now on upgrading the autonomous capabilities of their two USMC K-MAX air vehicles through a government-funded contract. Flight-testing is expected to start this month. The USMC experiment includes Kaman's K-MAX TITAN unmanned system and Near Earth Autonomy's sensor-based autonomy suite. Updated sensor systems should ensure the aircraft can function in any type of weather, among other capabilities, to handle heavy-duty loads and situations.

Kaman Air Vehicles is a division of Kaman Aerospace Corp.

Learn more at kaman.com.

Source: Kaman Air Vehicles

Published May 2021
