Fast and affordable solution proposed to integrate 2D materials into transparent displays and semiconductors

The Korea Institute of Machinery and Materials (KIMM) has developed a roll-based damage-free transfer technique that allows two-dimensional (2D) nanomaterials to be transferred into wafer scale without damage.

The proposed technique has a variety of applications from transparent displays and semiconductors to displays for self-driving cars. It is expected to accelerate the commercialization of 2D nanomaterial-based, high-performance devices.

Dr. Kwang-Seop Kim, principal researcher of the Department of Nano-Mechanics at KIMM, succeeded in developing a technique of transferring 2D nanomaterials, as thin as 1/50,000 of a strand of hair, to a substrate of at least 4 in. (approx. 10 cm) without damage.

The roll-based process involves transferring 2D nanomaterials on a film to a desired substrate. It is a highly efficient technique that enables large-area continuous transfer of nanomaterials, similar to paper printing.

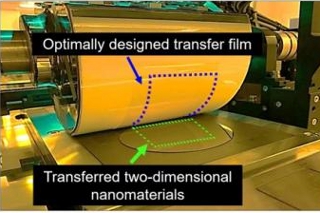

The transfer process includes nanomaterials on a transfer film (A) and a target substrate (B). In roll transfer, the nanomaterials are transferred to B when A is rolled onto B. This is similar to the process of transferring a tattoo onto skin using a tattoo sticker. The sticker plays the role of the transfer film, while the tattoo represents the 2D nanomaterials and the skin is the substrate.

The key point in the proposed technique was to identify two different types of damage mechanisms in relation to the deformation of the adhesive layer in the transfer film through computer simulation and experiments. The team optimized the thickness of the adhesive layer to minimize the deformation of the adhesive layer during the transfer process, leading to achieving the damage-free transfer of large-area 2D nanomaterials.

In simple terms, the team discovered the principle behind the damage-free transfer of an extremely thin tattoo to skin by way of optimizing the tattoo sticker.

The technique can be used in the roll-based transfer process for the production of 2D nanomaterial-based flexible transparent displays and transparent semiconductors, decreasing the damage in 2D nanomaterials down to 1%, compared to the existing damage rate of 30%.

Principal researcher Kim said, "Our technique of transferring large-area 2D nanomaterials and micro-devices without damage to substrates will significantly lower manufacturing costs of wearable devices, flexible transparent displays, and high-performance bio/energy sensors, thus accelerating the commercialization of related applications. We also expect to see new businesses across industries from next-generation semiconductors to future vehicles."

Source: Korea Institute of Machinery and Materials

Published May 2021
