Unexpected: Wind turbines more productive when placed behind hill

If someone asked you to name the ideal place to build a wind turbine, chances are your first answer would not be "behind a hill." Yet researchers from the University of Twente in the Netherlands have discovered that in some cases wind turbines can actually produce more energy in that position than in a wide, open landscape.

In an article published in the leading scientific journal Renewable Energy, Dr. Luoqin Liu and Dr. Richard Stevens, both faculty in the Science and Technology department of the university, show in a series of simulations that wind turbines behind hills can generate up to 24% more energy.

To study the influence of complex terrain on the energy production of wind turbines, Liu conducted simulations based on a 90-m-tall turbine with 63-m blades. In Figure 1, the wind turbine is placed 756 m behind a hill that is 90 m high.

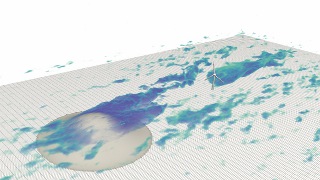

Figure 1. One of Liu's simulations, showing high turbulence immediately behind the hill. [Credit: Visualization by Dr. Srinidhi Gadde].









The increase in production is the result of two effects, says Stevens. "The wind speed immediately behind the hill is slower, which creates an area of low pressure. This low-pressure area sucks in air from above, where the wind is much stronger than it is close to the ground. This means that a wind turbine does not need to be higher to take advantage of the strong winds at higher altitudes," he says.

"In addition, the wind above the hill blows in a different direction to the wind close to the ground. This causes the slow-moving air to bend away from the wind turbine (see Figure 2), leaving the turbine behind the hill to benefit from the strong current," Stevens says. These combined effects cause the wind turbine to produce up to 24% more energy than in the same conditions without the hill.

Figure 2. A view of the simulation clearly showing that the wind flow at low wind speed (blue) turns upwards behind the hill. This puts the wind turbine (the vertical line) in a stronger wind flow (red).









These findings do not mean that the government in the Netherlands (or anywhere, for that matter) should immediately start placing all wind turbines behind hills, the researchers say. The simulations also show that the wind flow behind a hill is far more turbulent, which causes extra wear and tear. Whether the added yield would outweigh the cost of any additional damage remains to be seen. "For this particular situation, with only one hill, energy production is higher, but real-life terrain is much more complex," Stevens says.

Source: University of Twente

Published June 2021
