New algorithm flies drones faster than human racing pilots

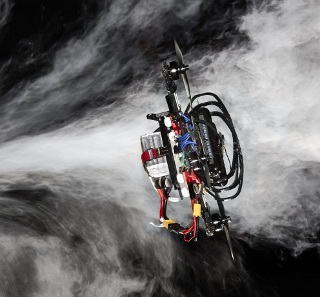

A drone flying through smoke to visualize the complex aerodynamic effects. [Credit: Robotics and Perception Group, University of Zurich]









To be useful, drones need to be quick. Because of their limited battery life, they must complete whatever task they have -- searching for survivors on a disaster site, inspecting a building, delivering cargo -- in the shortest possible time. They also may have to do it by going through a series of waypoints like windows, rooms, or specific locations to inspect, adopting the best trajectory and the right acceleration or deceleration at each segment.

Algorithm outperforms professional pilots
The best human drone pilots are very good at doing this, and they have, so far, always outperformed autonomous systems in drone racing. Now, a research group at the University of Zurich (UZH) has created an algorithm that can find the quickest trajectory to guide a quadrotor -- a drone with four propellers -- through a series of waypoints on a circuit.

"Our drone beat the fastest lap of two world-class human pilots on an experimental race track," says Davide Scaramuzza, who heads the Robotics and Perception Group at UZH and the Rescue Robotics Grand Challenge of the NCCR Robotics, which funded the research.

"The novelty of the algorithm is that it is the first to generate time-optimal trajectories that fully consider the drones' limitations," says Scaramuzza.

Previous works relied on simplifications of either the quadrotor system or the description of the flight path, and thus they were sub-optimal. "The key idea is, rather than assigning sections of the flight path to specific waypoints, that our algorithm just tells the drone to pass through all waypoints, but not how or when to do that," says Philipp Foehn, PhD student and first author of the paper.

External cameras provide position information in real time
The researchers had the algorithm and two human pilots fly the same quadrotor through a race circuit. They employed external cameras to capture the motion of the drones precisely and -- in the case of the autonomous drone -- to give real-time information to the algorithm on where the drone was at any moment. To ensure a fair comparison, the human pilots were given the opportunity to train on the circuit before the race.

The algorithm won.

All its laps were faster than the human ones, and the performance was more consistent. This is not surprising, because once the algorithm has found the best trajectory it can reproduce it faithfully many times, unlike human pilots.

Before commercial applications, the algorithm will need to become less computationally demanding, as it now takes up to an hour for the computer to calculate the time-optimal trajectory for the drone. Also, at the moment, the drone relies on external cameras to compute where it was at any moment. In future work, the scientists want to use onboard cameras. For now, the demonstration that an autonomous drone can, in principle, fly faster than human pilots is promising. "This algorithm can have huge applications in package delivery with drones, inspection, search and rescue, and more," says Scaramuzza.

Their work was published in Science Robotics in July 2021.

Source: University of Zurich

Published August 2021
