Hydrogen-fueled heavy-duty engines are the focus of MAHLE Powertrain and Liebherr Machines Bulle collaboration

MAHLE Powertrain, a division of automotive supplier MAHLE, is partnering with Liebherr Machines Bulle SA in their research aimed at developing hydrogen-fueled internal combustion engines. The work involves the use of MAHLE's prechamber jet ignition system (MJI).

Engine tests have shown that by using this technology, the mixture of hydrogen and air can be ignited and burned at a high compression ratio, which makes the combustion process very efficient and stable. This could pave the way for hydrogen generated in climate-neutral processes to be used in heavy-duty and off-road applications, such as excavators, track vehicles, and wheeled loaders.

"The use of hydrogen as a combustion fuel has the potential to make many heavy-duty and off-road applications climate-neutral quickly," says Peter Wieske, director of Corporate Advanced Engineering at MAHLE. "A large number of studies in recent decades have shown that hydrogen can be used in internal combustion engines without any problems."

"The challenge is to stop engine knocking and premature ignition without reducing the compression ratio and thus efficiency and performance yield. Our joint tests suggest that we have found the right solution with MAHLE Jet Ignition," says Mike Bunce, head of Research for MAHLE Powertrain US.

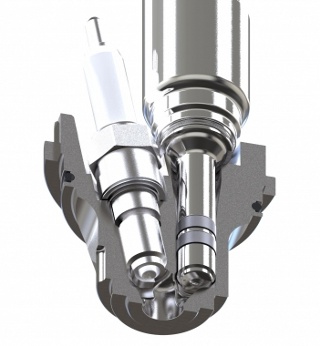

The MAHLE prechamber jet ignition system (MJI) makes hydrogen combustion in Liebherr motors possible.





In order to achieve stable operation with a high compression ratio while avoiding engine knock and pre-ignition, hydrogen engines must be operated with a large amount of excess air, but the energy from a conventional spark plug is not enough to ignite such a mixture. MAHLE Jet Ignition solves the problem by burning a small amount of an ignitable mixture in a prechamber cylinder. The resulting gas plasma is passed through small openings into the main combustion chamber and, due to its high energy content, rapidly and evenly ignites the main gas mixture.

Tests with H966 and H964 engines from Liebherr have delivered excellent results in terms of combustion speed, performance, and emissions.

Hydrogen engines are ideal for high load cycles with sudden load changes and cope well with heat, dust, and vibrations. This makes them an excellent choice for use in heavy-duty and off-road applications, where fuel cells hit their limits more quickly.

MAHLE has strong expertise in air management, filtration, thermal management, and power electronics. The Germany-based technology group already has around 100 employees working on hydrogen-related projects. MAHLE has also been a supplier for fuel cell vehicles for more than 10 years and operates a hydrogen test center on a 1,400-m² site in Stuttgart. As a member of the Hydrogen Council, it also campaigns at a political level for the expansion of hydrogen technology.

Source: MAHLE

Published October 2021
