Stratasys works with Lockheed Martin to qualify PEKK-based material for 3D-printed space and aviation end-use parts

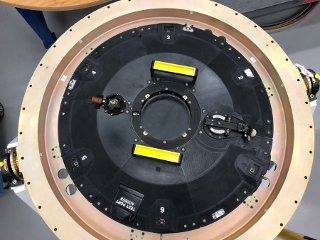

Hatch cover for the Orion spacecraft by Lockheed Martin printed in Antero 840CN03. [Credit: Stratasys]





3D-printing company Stratasys is providing the public with baseline material qualification data for its Antero 840CN03 filament material in collaboration with Lockheed Martin and Metropolitan State University of Denver. The release of this qualification data allows those in the industry to use the material for additively manufactured aerospace parts, such as those on the Orion spacecraft, using Stratasys production-grade 3D printers.

Designed for space-ready performance, Antero 840CN03 is a blended and functionalized PEKK-based high-performance thermoplastic composite material developed specifically for production-grade Stratasys FDM 3D printers that meets ESD performance and NASA outgassing requirements while also exceeding the flame, smoke, and toxicity (FST) characteristics required for aviation applications.

During this first phase of qualification, a baseline set of data was collected by printing over 280 test coupons in Antero 840CN03 on Stratasys Fortus F900 3D printers at Lockheed Martin in Littleton, CO, and Stratasys Direct Manufacturing in Belton, TX. Coupons were tested for tensile strength properties -- a key mechanical property for design. Data collected confirmed the high performance of the Antero material as well as the consistent mechanical properties that have been previously shown in academic studies. Future phases of testing will expand to additional relevant properties, giving design engineers additional data to work with in applying Antero to other part types and environments.

Stratasys and Lockheed Martin previously worked together to collect and release material characteristics data. Most recently in 2018, as members of America Makes, the companies released data for SABIC ULTEM 9085 resin printed on a Stratasys Fortus 900mc 3D printer.

Full access to the data report is available to the public in PDF form at msudenver.edu/wp-content/uploads/2022/03/Antero_-Raw-Data-Report_840CN03_3.28.2022.pdf.

You can also learn more about Stratasys materials and applications for the aerospace industry online at stratasys.com/en/industries-and-applications/3d-printing-industries/aerospace/.

Source: Stratasys

Published April 2022
