New heat-tolerant, high-capacity capacitor created with solid electrolytes borrowed from all-solid-state batteries

Capacitors are energy storage devices, consisting of two electrodes and an electrolyte, that are capable of rapid charging and discharging because of charge adsorption and desorption properties at the electrode-electrolyte interface.

Because capacitors' energy storage does not involve chemical reactions, their storage capacity is lower than that of lithium-ion batteries, but they are useful for power leveling for renewable energy that requires repeated charging at high currents, regenerative braking energy for trains and electric or hybrid cars, as well as instantaneous voltage drop compensation devices that prevent equipment failure due to lightning strikes. They are also expected to be used to store energy for wearable devices in the near future.

Most capacitors use a liquid electrolyte with a low boiling point, which can only be used at temperatures below 80 C (176 F). Ceramic capacitors that use solid inorganic materials as a dielectric can be used at temperatures above 80 C, but their storage capacity is much lower than liquid electrolyte capacitors, which limits their use to electronic circuits.

To increase the energy storage of capacitors, it is necessary to have a large contact area at the interface between the electrode and the electrolyte. However, making a large contact area is difficult using solid electrolytes, so the creation of a capacitor with high storage capacity that can also operate at high temperatures has been desired for a long time.

A research group led by Professor Akitoshi Hayashi at the Graduate School of Engineering, Osaka Metropolitan University in Japan, has developed a solid electrolyte that is highly deformable, allowing it to have a large contact area with an electrode, which was developed to be used for an oxide-based all-solid-state battery. In this study, the group fabricated a composite using the same highly deformable solid electrolyte and carbon, then used it to construct both electrodes for a bulk-type all-solid-state capacitor.

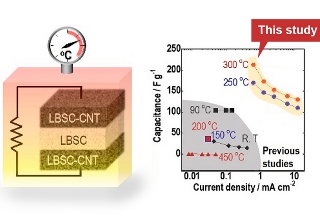

A bulk-type symmetric all-solid-state capacitor, with an LBSC SE layer between two electrode layers of an LBSC-CNT composite (left), showed low resistance and was operable at 100 to 300 C (212 to 572 F) (right). [Credit: Hayashi, Osaka Metropolitan University]









This capacitor is capable of high current densities and high-capacity charging and discharging at temperatures of 200 to 300 C (392 to 572 F), creating the world's first bulk-type all-solid-state capacitors. The researchers expect their capacitor will be used to improve technology for high-temperature environments, which could not be developed previously due to these technical limitations.

"The key to realizing this capacitor was to take the solid oxide electrolytes that we have been developing for all-solid-state lithium batteries -- which combine excellent deformability and lithium-ion conductivity -- and apply them to capacitors," said Hayashi.

In the future, the researchers hope to construct all-solid-state hybrid capacitors with even higher energy densities by controlling the chemical reaction between a solid electrolyte and carbon, then combining them with positive electrode materials used in lithium-ion batteries.

See: "Thermally stable bulk-type all-solid-state capacitor with a highly deformable oxide solid electrolyte" in the Journal of Power Sources.

Source: Osaka Metropolitan University

Published August 2022
