Scientists capture first images of atoms 'swimming' in liquid

Scientists who specialize in studying graphene at The University of Manchester in the U.K. have created a novel "nano-petri dish" using two-dimensional (2D) materials to create a new method of observing how atoms move in liquid.

The team, led by researchers based at the National Graphene Institute (NGI), used stacks of 2D materials including graphene to trap liquid in order to further understand how the presence of liquid changes the behavior of the solid. They were able to capture images of single atoms "swimming" in liquid for the first time. The findings, published in Nature, could have widespread impact on the future development of green technologies such as hydrogen production.

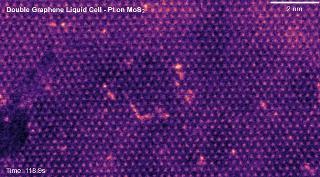

Using Transmission electron microscopy (TEM), scientists have been able to observe atoms "swimming" while trapped in graphene stacks. [Credit: TEM screenshot from The University of Manchester]





When a solid surface is in contact with a liquid, both substances change their configuration in response to the proximity of the other. Such atomic-scale interactions at solid-liquid interfaces govern the behavior of batteries and fuel cells for clean electricity generation, as well as determining the efficiency of clean water generation and underpinning many biological processes.

"Given the widespread industrial and scientific importance of such behavior, it is truly surprising how much we still have to learn about the fundamentals of how atoms behave on surfaces in contact with liquids," said Professor Sarah Haigh, one of the lead researchers. "One of the reasons information is missing is the absence of techniques able to yield experimental data for solid-liquid interfaces."

Transmission electron microscopy (TEM) is one of only a few techniques that allows individual atoms to be seen and analyzed. However, the TEM instrument requires a high vacuum environment, and the structure of materials changes in a vacuum. "In our work, we show that misleading information is provided if the atomic behavior is studied in vacuum instead of using our liquid cells," said Dr. Nick Clark, first author.

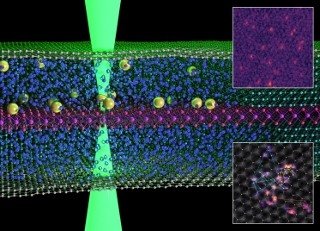

Illustration of swimming atoms trapped in graphene stacks. [Credit: Illustration by The University of Manchester]





The NGI's Professor Roman Gorbachev pioneered the stacking of 2D materials for electronics. In this work, his group used those same techniques to develop a "double graphene liquid cell." A 2D layer of molybdenum disulfide was fully suspended in liquid and encapsulated by graphene windows. This novel design allowed the team to provide precisely controlled liquid layers, enabling unprecedented videos to be captured showing the single atoms "swimming" around surrounded by liquid.

By analyzing how the atoms moved in the videos and comparing to theoretical insights provided by colleagues at Cambridge University, the researchers were able to understand the effect of the liquid on atomic behavior. The liquid was found to speed up the motion of the atoms and also change their preferred resting sites with respect to the underlying solid.

The team studied a material that is promising for green hydrogen production, but the experimental technology they have developed can be used for many different applications.

"This is a milestone achievement, and it is only the beginning," Clark said. "We are already looking to use this technique to support development of materials for sustainable chemical processing needed to achieve the world's net-zero ambitions."

Source: The University of Manchester

Published September 2022
