New rotary microstage includes built-in controller

The new M3-RS-U2-4.5-360 Rotary Smart Stage from New Scale Technologies is a miniature positioning module that simplifies the task of embedding high-precision rotary motion into scientific and industrial instruments. The latest addition to the M3 Smart Stage family provides point-to-point angular positioning with closed-loop resolution better than 0.022 degrees. M3 Smart Stages integrate piezoelectric motors, position sensors, and built-in controllers in compact modules that accept direct digital input from a system processor.
Learn more.

New high-performance hollow shaft gear unit for heavy-duty applications

Harmonic Drive has released its HPF series of hollow shaft gear units designed for heavy-duty industrial applications. These advanced gear units offer high torque outputs and flexible installation options, and they provide exceptional torque density and positional accuracy. Industrial applications include robotics, packaging, and material handling.
Learn more and get all the specs.

Totally new! Hybrid stepper and PM motor

The Hybrid-PM-Mix (HPM) from Lin Engineering is the first motor of its kind, combining the stator of a hybrid stepper and the rotor of a PM motor in the form factor of a high-speed BLDC. The result is a motor that behaves like a typical high-speed BLDC with the added benefits of hybrid steppers -- precise position control and position holding -- with low noise and vibration too. The 1330 Series is a small motor with a frame size of just 13 mm, which is perfect for small applications with minimal space.
Find out all the specs.

New magnetic tracks for linear motors -- more force with no redesign

The MWD+ is a new family of magnetic tracks from ETEL equipped with stronger magnets. These tracks are compatible with any existing ETEL LMG and LMS linear motor, enabling an average of 15% higher continuous and peak force compared to existing MWD products. Benefits include higher force density per unit volume, which allows users to improve the overall duty cycle or run a given duty cycle at lower temperatures.
Learn more about ETEL linear motors.

maxon adds dynamism to robotic drives

Innovative motor concepts are the answer to growing market requirements for dynamic response, compactness, and power density. With the EC frameless DT, maxon presents a solution that really packs a punch. The DT50 with matching encoder is the precursor of a new product family developed specifically for dynamic movements like those in robotics. The brushless motor with its frameless concept can be easily integrated into a wide range of applications by design engineers in applications where speeds can change in an instant. When installed, the EC frameless DT50 effortlessly reaches a nominal torque of over 500 mNm at a nominal speed of 4,000 rpm.
Learn more.

Better conveyors for automotive assembly lines

The Torque Arm Conveyor Drive is a more energy-efficient and maintenance-friendly replacement for the legacy "Floating Frame" conveyor drives used in many automotive assembly lines. Developed by OCC Systems, it features a custom-built gearbox solution with an Overhead Conveyor Drive gear unit from NORD DRIVESYSTEMS. This new drive concept contains far fewer parts, has a modular and maintenance-friendly construction, and comes with a built-in back-up system.
Read the full article.

Robot handles precision masking tape application for aerospace

Engineers from Aerobotix and FerRobotics have developed an impressive End of Arm Tooling system that provides smooth masking on parts varying in shape and puts down precise tape lines where the customer needs them -- even on intricate curvy paths. You've got to see it in action.
Read the full article.

Linear robots are now even more versatile

Bosch Rexroth has expanded its portfolio of linear robots (eight different axis combinations with 68 sizes!) for various applications in factory automation. The much wider range of working areas and loads makes the Cartesian subsystems also suitable for applications like battery handling or intralogistics. Predefined axis combinations make for quick and easy sizing and selection. Configure and finalize online and order as preassembled subsystems -- optionally with controllers. Each multi-axis system is also available as a Smart Function Kit for handling or dispensing. Preinstalled software allows for fast commissioning and intuitive programming.
Learn more about Bosch Rexroth smart mechatronic systems.

Selecting linear actuators for robotics

Nick Novotny over at Nook Industries has put together a handy and very useful short guide on selecting linear actuators for robotic applications. Besides addressing the primary considerations, he also explains motor types, linear actuator types, modularity, and advantages and disadvantages.
Read this informative Nook Industries blog.

5 key considerations for selecting a propulsion motor

Josh Jennings, mobile servo motor and drive applications engineer for Parker Hannifin's Hydraulic Pump and Power Systems Division, runs through the key factors to consider for a vehicle electrification project, including how the motor is cooled, its speed range, flexibility, efficiency, and reliability. Solid basic information.
Read the full Parker blog.

New mini planetary gearmotors

New PH Series Mini Planetary Gearmotors from Applied Motion Products are used with small step motors in NEMA 8, 11, and 14 frame sizes. These gearmotors are used in applications where space is critical. Small motors usually don't produce enough torque for demanding applications. Mini Planetary Gearmotors are an ideal solution. They offer an increase in torque and better inertia matching without breaking the budget.
Learn more and see all the options offered by Electromate.

New cobot welders with extended range unveiled at FABTECH 2022

Universal Robots has grown its welding application segment more than 80% this year as partners develop new capabilities for the pioneering cobot welders. At FABTECH last week, Universal Robots' booth showcased new solutions from Vectis Automation and Hirebotics, enabling the weldment of larger and more complex parts. Attendees also experienced Precision Cobotics' automated MECCO laser-marking solution with Apera AI bin picking, laser welding with Cobot Systems, metal deburring with Kane Robotics, along with the new UR20 cobot in a machine-tending application.
Learn about the new welding options and other UR FABTECH releases.

New! Multi-axis gantry attachment kits extend your working envelope

Multi-axis linear actuator assemblies from Bishop-Wisecarver extend the working envelope of automated motion systems and provide for more complex motion. ECO60 Gantry Kits create reliable and easy-to-assemble connections between ECO60 Linear Actuators. Benefits include: saving design time without sacrificing design freedom, easy ordering with single-part-number kits, and fast and simple assembly and installation. All multi-axis kits are made from aluminum with black anodize and stainless-steel hardware.
Learn more.

Robots handle post processing for metal AM parts and components

The NetShape Robot from Rivelin Robotics provides an automated solution for metal support removal and targeted finishing to meet the standards of mission-critical industries. Driven by the powerful NetShape control software, both machine learning and traditional deterministic control theory are used to optimize the quality and repeatability of the work. The result is an automated support-removal solution that reduces defects by 90%, exhibits a 10-fold reduction in operational costs, and eliminates human risk and variability.
Learn more.

Flat external rotor with encoder

The DF45 brushless DC motors from Nanotec are now available with an integrated encoder. The new flat motors with a diameter of only 45 mm are ideal for applications that require precise positioning in confined spaces such as AGV wheel drives, access control systems, and door drives. The two-channel encoder has a resolution of 1,024 CPR and provides additional Hall signals for commutation. The difference in length between the standard motor and the encoder version is only 2 mm, as the encoder has been completely integrated. The DF45-E has a rated power of 65 W at a rated speed of 4,840 rpm. Custom windings or shafts are also available.
Learn more.

Airbus subsidiary will study composition of hydrogen engine contrails

Airbus UpNext, a wholly-owned subsidiary of airplane manufacturer Airbus, recently announced it is initiating a flight test program to study the contrails produced by a hydrogen combustion engine as part the company's ZEROe program. The project, named "Blue Condor," will launch two modified Arcus gliders, one equipped with a hydrogen combustion engine and one equipped with a conventional kerosene-powered combustion engine, in order to compare contrails emitted at high altitudes.

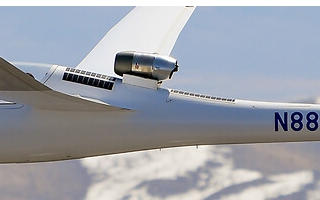

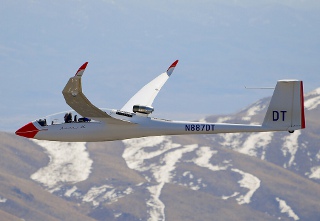

The Airbus UpNext Blue Condor demonstrator is the flying testbed for science experiments to compare contrails created by engines that run traditional jet fuel and engines that run on hydrogen power.[Photo credit: James Darcy/Airbus]









"Contrail characterization is of significant interest to Airbus," said Sandra Bour Schaeffer, CEO of Airbus UpNext. "We know that hydrogen emits no carbon dioxide when burned, but we also know that with water vapor and heat being the most significant by-products, hydrogen combustion does produce contrails. Although these contrails differ significantly to those produced by conventional JetA/A1 combustion engines, understanding their composition will be key to support our decarbonization journey."

Bour Schaeffer said the testing program was part of Airbus' mission "to bring the world's first zero-emission commercial aircraft into service by 2035."

The Blue Condor demonstrator will be supported by the Perlan Project team, which will be responsible for the modification of the Arcus gliders. They will also provide the high-altitude glider pilots -- the same pilots who in 2018 set the world subsonic altitude record of 76,124 ft in a pressurized glider for Airbus Perlan Mission II.

The German Research Center DLR will collect and analyze data captured using their measurement instrumentation sensors on a chase aircraft, while Airbus will ensure the provision of the hydrogen system and equipment, including the combustion engine as well as the details of the flight test mission.

To ensure 100% comparable data between the hydrogen and conventional engine, the test flights will be carried out back to back under the same meteorological conditions. Test flights are scheduled for late 2022 in North Dakota in collaboration with the University of North Dakota.

Airbus is also conducting various demonstration programs, including ECLIF3 (Emission and Climate Impact of Alternative Fuels) and VOLCAN (VOL avec Carburants Alternatifs Nouveaux), to better understand contrails produced by sustainable aviation fuels.

Meanwhile, the Airbus Perlan Mission II is also continuing, with plans in 2023 to soar to altitudes approaching the Perlan 2 glider's 90,000-ft service ceiling in order to conduct research of upper atmospheric weather. If successful, Airbus' Perlan Mission II would set the all-time world altitude record for winged flight and would do so in a zero-emission aircraft.

Source: Airbus

Published October 2022
