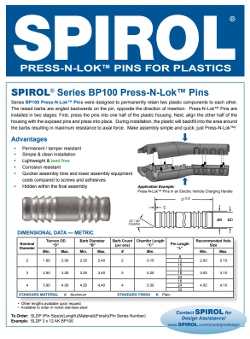

Get the Press-N-Lok™ Pin specifications

Download the Press-N-Lok™ Pin specifications by clicking the image above.





Series BP100 Press-N-Lok™ Pins were designed to permanently retain two plastic components to each other. The raised barbs are angled backwards on the pin, opposite the direction of insertion.

Press-N-Lok™ Pins are installed in two stages: First, press the pins into one half of the plastic housing. Next, align the other half of the housing with the exposed pins and press into place. During installation, the plastic will backfill into the area around the barbs resulting in maximum resistance to axial force.

Make assembly simple and quick; just Press-N-Lok™!

Learn the many advantages of this impressive and useful technology.

Download the Press-N-Lok™ Pin specifications in PDF form by clicking on this link.

Source: SPIROL

Published November 2022
