World's largest flying aircraft completes first flight carrying hypersonic separation test vehicle

Stratolaunch's Roc aircraft takes off from Mojave Air and Space Port on Oct. 28, 2022, during its first captive carry flight with the Talon-A separation test vehicle, TA-0. [Credit: Stratolaunch]









Stratolaunch recently announced the successful completion of its first captive carry flight with the Talon-A separation test vehicle, TA-0, integrated with its Roc's center wing pylon. The eighth flight test of Roc, the world's largest flying aircraft, lasted 5 hours and 6 minutes over the Mojave Desert and reached an altitude of 23,000 ft.

The flight focused on measuring the aerodynamic loads on the Talon-A vehicle while mated to Roc. The loads captured in flight will validate aerodynamic predictions to ensure the release mechanism will function as designed.

Test Resource Management Center Director George Rumford (left), U.S. Senator John Hoeven of North Dakota (center), and Stratolaunch CEO and President Dr. Zachary Krevor (right) unveiled the Talon-A vehicle replica at the UAS Summit and Expo 2022 event on Oct. 4, 2022. [Credit: Stratolaunch]









Stratolaunch's hypersonic flight test service is centered around its Talon-A, a reusable autonomous hypersonic testbed vehicle that provides a flexible test architecture for hypersonic flights and experimentation. Talon-A is attached to the center of the Roc aircraft on the ground and released high in the air.

The Stratolaunch Roc aircraft is wider than a football field is long.

The Stratolaunch aircraft is designed solely to be a mobile launch platform that will enable convenient, affordable, and routine "airline-style access" to space. The hallmark of the design is the reinforced center wing, which can support multiple launch vehicles -- weighing up to a total of 500,000 lb. The wingspan, the largest of any plane ever assembled, is 385 ft.

The plane features two cockpits, one on each side of the massive launch-bay space, but only one is used at any given time to fly the craft. Future rocket-driven payloads will be released after the plane reaches a cruising altitude of 35,000 ft.

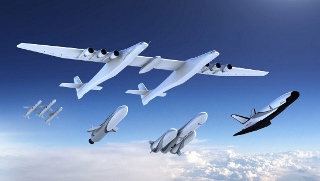

An artist's conception of the Stratolaunch Roc aircraft and its varied future payloads. [Credit: Stratolaunch]





One of the system's biggest benefits is the company does not have to maintain a traditional rocket spaceport on the ground. Also, runway takeoffs can circumvent bad weather more often, as well as air traffic and other variables that cause delays with traditional ground launches.

"We have conducted a variety of ground tests in anticipation of this first captive carry flight, and with each successful test milestone achieved we have built confidence that the hardware will perform exactly as it was designed. It's exhilarating to see the team's hard work come to life and see the vehicles fly as an integrated system," said Dr. Zachary Krevor, Stratolaunch chief executive officer and president.

The company will complete a series of captive carry flights in the coming months, culminating in a separation test of the TA-0 vehicle out over the Pacific Ocean in late 2022.

The company anticipates delivering hypersonic flight services to government and commercial customers in 2023.

Source: Stratolaunch

Published November 2022
