Aerospace consortium aims to advance hybrid-electric and water-enhanced turbofan tech for future aircraft

A international group of aerospace technology companies has announced the formation of a collaborative consortium to develop hybrid-electric and water-enhanced turbofan technology for future aircraft propulsion systems. The effort is supported by the European Union Clean Aviation Joint Undertaking (Clean Aviation).

MTU Aero Engines AG (MTU), Pratt & Whitney, Collins Aerospace (Collins), GKN Aerospace, Airbus, and others aim to demonstrate the potential of these technologies to improve fuel efficiency and reduce aircraft CO2 emissions by up to 25% compared to today's state-of-the-art propulsion systems for short- and medium-range aircraft. The consortium is coordinated by MTU.

The Sustainable Water-Injecting Turbofan Comprising Hybrid-Electrics (SWITCH) project is focused on developing a novel propulsion concept built from two revolutionary and synergetic technologies: Water-Enhanced Turbofan (WET) and hybrid-electric propulsion. By combining these technologies with Pratt & Whitney's GTF (geared turbofan) engine architecture, the SWITCH concept aims to significantly enhance efficiency and substantially reduce emissions across the full operating envelope of an aircraft. Technologies developed as part of SWITCH will be fully compatible with cleaner alternative fuels such as Sustainable Aviation Fuel (SAF), and will be evaluated for future use with hydrogen.

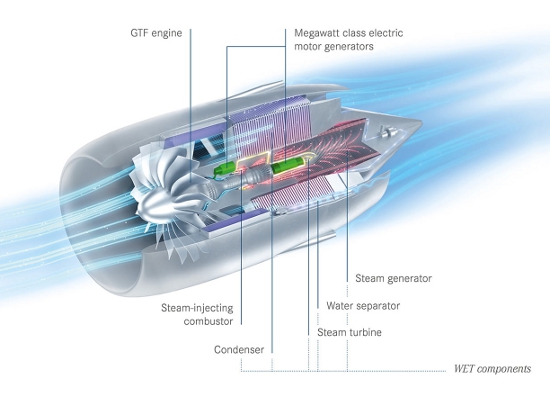

The WET concept recovers water vapor from the engine exhaust and re-injects it into the combustion chamber. [Credit: Collins Aerospace]





The hybrid-electric GTF powertrain aims to provide even greater efficiency across all phases of flight by leveraging highly efficient megawatt-class electric motor generators, power electronics, and batteries to optimize the performance of the fuel-burning gas turbine. The WET concept recovers water vapor from the engine exhaust and re-injects it into the combustion chamber to significantly improve fuel efficiency, reduce NOx emissions, and lessen contrail-forming emissions. These technologies are designed to work together to deliver a step-change reduction in emissions and energy use across the full operating system, while maintaining "world-class reliability and operability."

Airbus will provide key expertise relating to the future integration of SWITCH technologies at the aircraft level and will support the evaluation of performance benefits including aircraft design and integration of battery and energy management systems.

Collins will provide megawatt-class electric motor generators and power electronics, high-voltage DC distribution and protection, thermal management components, and nacelle architectures for the project. "Hybrid-electric propulsion technology is a key enabler for increased efficiency across multiple different aircraft applications, from advanced air mobility to commercial airliners," said Mauro Atalla, senior vice president, Engineering & Technology for Collins Aerospace.

GKN Aerospace will develop various engine structures with all-new functionalities, such as integrated electric machines and heat exchangers. "We are delighted to be collaborating in the SWITCH project and help address many exciting opportunities and challenges around thermal and electrical power management within a highly advanced propulsion system," said Henrik Runnemalm, vice president, Global Technology Center, Sweden, at GKN Aerospace. "We will leverage our unique hot test rig in Trollhattan, Sweden, as well as our high-voltage electrical wiring developed by our GKN Fokker business in the Netherlands."

Current funding for Phase 1 of SWITCH extends to 2025 and will include testing of a hybrid-electric GTF engine, WET technology and sub-system laboratory testing, and design activity around an integrated hybrid-electric and WET cycle propulsion system. Subject to successful testing of these key technologies and component designs, further phases of ground testing and flight tests are expected to follow.

Clean Aviation is a public-private partnership co-funded by the European Union between the European Commission, the aerospace industry, and research institutes. It is dedicated to advancing transformational aircraft technologies that will help enable net-zero emissions for aviation by 2050. The project will leverage collaboration between multiple aerospace companies, universities, and research organizations across 11 countries in Europe and the United States.

Source: Collins Aerospace

Published April 2023
