What is 3D-MID? Molded parts with integrated electronics from HARTING

Can I use 3D-Circuits to outperform flat PCBs?

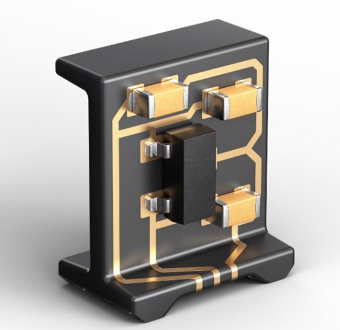

3D-MID technology combines electronic and mechanical functionalities into a single 3D component, creating what the company calls "3D-Circuits." The 3D-MID component carrier is an in-house HARTING development that serves as a connecting element between a printed circuit board (PCB) and electronic components (such as LEDs, ICs, photo-diodes, or sensors).





The most remarkable aspect of technology is its constant development and improvement. These include slimmer laptops, smaller phones, and medical devices designed to be unobtrusive and barely visible to the naked eye. As electronic devices continue to evolve and shrink, so do their circuits and, ultimately, their components. This development has raised the demand for component miniaturization and integration.

In this article, we take a closer look at 3D-MID (three-dimensional mechatronic integrated devices) technology, what it is, its many benefits, and its applications. This technology allows for more compact designs while enhancing functional density. We also provide a short overview about the technology's developer, HARTING, as a full-service provider. HARTING's tagline for the technology is, "Like a PCB, but 3D."

The miniaturization revolution in electronics
Smaller devices mean less environmental impact. A laptop, for example, uses 80% less power than a desktop computer, with a peak power consumption of 60 W compared to 175 W for desktops. This reduction in energy use is due to miniaturization.

Miniaturization has revolutionized many sectors, from medical and healthcare to automotive as well as industrial and consumer electronics. Here are a few drivers of this movement:

  • Aesthetic demands: We have come to expect our devices to be visually appealing and well-designed.
  • Portability: We also want our devices to be lightweight and easy to carry.
  • Cost savings: While miniaturization can be costly initially, it allows for the use of fewer materials, which can save money in the long run.
  • Eco-friendly power consumption reductions: Smaller parts consume less energy, which helps lower operating costs, increase battery life, and promote greener products.
  • Less heat dissipation: Since smaller parts use less power, electronic devices generate less heat. This means bulky heatsinks or fans can be removed, reducing weight, cost, power, and noise.

Almost every industry is moving toward functional density, meaning that hardware components need to be interconnected and made smaller and smaller. 3D-MID is a way to fulfill those requirements by reducing mass and optimizing space while allowing for those parts to offer the same or more capabilities.

What Is 3D-MID?
The term "mechatronics" was coined in 1969 by a senior engineer of the Japanese firm Yaskawa. It is a combination of the words "Mecha" (machines) and "Tronics" (electronics). Since then, the definition has evolved. It is now used to describe the abilities to use computers, electronics, and mechanics to build more intelligent systems, such as robotic, control, and electromechanical systems.

3D-MID stands for "Three-Dimensional Molded Interconnect Device" or "Three-Dimensional Mechatronic Integrated Devices." These are mechatronic devices that combine electronic and mechanical functionalities into a single, three-dimensional component.

HARTING's 3D-Circuits technology allows the 3D-MID parts or the injection-molded thermoplastic part to be directly integrated with electronic circuits and components, making them more compact and functionally dense. Imagine a circuit board that is significantly smaller and composed of mostly plastic rather than metal.

Furthermore, injection-molded circuit boards significantly reduce the number of production processes, assembly times, and individual components required -- and therefore can lower the production costs.

How does 3D-MID technology work?
The flexibility of 3D-MID technology allows device designers to go where they need to. A three-dimensional component that combines electrical and mechanical functions allows for endless possibilities.

Hearing device: By integrating functions and the three-dimensional routing of circuit tracks, the design space for the electronics in hearing aids can be optimally utilized.





The designers lay down their requirements along with very specific measurements. The components are then constructed through injection molding. Injection molding is when materials such as plastic are heated and melted before being injected into a mold and cooled to achieve the desired shape. It is a process often used by many industries because it enables the creation of parts with complex shapes quickly for mass production.

Because injection molding is so flexible, designers can use it to construct virtually anything with the exact specifications. Before realizing a mold, different forms of simulation can be used to check if the parts fulfill the requirements, and sample parts from rapid prototyping can be made.

Next comes laser activation through laser-direct structuring (LDS), a procedure created by LPKF Laser & Electronics in 1996. In this process, a laser beam defines the conductive trace, etching the layout directly into the injection-molded plastic component. The injection-molded plastic will have special additives, which laser beams can detect. The lasers then reveal areas where the conductor structures will eventually be placed.

In the chemical plating process, copper is laid down on the laser structured areas. This allows the engineers to create very precise electronic circuits. After metallization in a copper bath, conductive traces form in the areas that have been activated and will allow for metals to adhere to it.

Combining mechanical and electrical hardware makes designing and manufacturing electronic devices with complex functionality easier and less expensive. It essentially opens up a world of possibilities -- and possibly enormous savings for manufacturers and consumers.

What are the benefits and uses of 3D-MID technology?

  • Integration of mechanical and electrical functions into one component;
  • Better reliability and quality;
  • Flexibility that allows for unlimited design options;
  • Helps reduce both size and weight;
  • Shortens assembly time, and thus reduces manufacturing costs.

3D-MID applications
Plastics and electronics come together in practically every piece of current and future technical equipment, from medical to automotive to consumer gadgets. 3D-MID technology is often regarded as the gamechanger in several applications such as:

Almost all industries can benefit from 3D-Circuits in some way, as many sectors have significant needs for miniaturization, such as the medical field.

3D-MID in the medical market
Mechatronics is a promising discipline that benefits multiple industries, especially medical or healthcare. Advancements in diagnostics and treatment have been made possible because of the miniaturization of electronics due to 3D-MID breakthroughs.

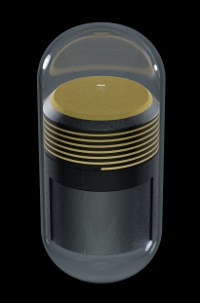

Antenna in capsule: This electronic "pill" can be swallowed as a substitution for an endoscope. With 3D-MID technology, components can be integrated and medical devices can be miniaturized.





Imagine this: You need to have an endoscopy. Most people find the idea and the experience of having a long, thin tube with a small camera on the top go inside them uncomfortable. However, what if you were able to avoid that? Using 3D-MID, manufacturers can now design devices that are less invasive and more comfortable for patients, particularly when it comes to monitoring and examining the patient from the inside.

No longer is it necessary to insert a long endoscopic camera down the throat. You can instead consume a non-invasive capsule, similar to how you take your vitamins. This capsule contains a little endoscopic camera that transmits 360-degree pictures of your body to your doctor, allowing the ability to visualize your digestive tract without the need for invasive procedures.

This is just one example of how technological advancements can make a previously uncomfortable situation more pleasant.

Mechatronics is also being used to create new types of prosthetics, such as the Luke Arm, a mind-controlled arm prosthesis that gives patients who've lost limbs the ability to perform everyday tasks.

3D-MID technologies are also used to design smaller medical equipment devices such as hearing aids, implants, and surgical and dental devices. 3D-Circuits can be made in any size while maintaining the same functionality and safety standards.

The possibilities with 3D-MID are unlimited. As this technology advances, we expect to see more organizations incorporate the technology for their space-saving projects, thereby reducing their assembly procedures -- and cutting costs.

HARTING's 3D-Circuits support the trend of technological miniaturization. With a focus on 3D-MID technology, the family-owned company stands internationally for pioneering miniaturization of components while maintaining full performance by combining electronic and mechanical functions in one component.

In addition, with its 3D-Circuits, HARTING is a leader in the transformation of innovations into cost-efficient series production and stands for high delivery capability. The company has MID experience since 2003, and complete in-house production enables the interdisciplinary team to create intelligent production concepts and ensures optimized process times, which, in turn, reduces overall costs.

The company is located in the innovative heart of the Swiss watch industry in Biel and stands by the quality promise: "Swiss Made 3D-Circuits."
