Novel 3D-printing method a 'game changer' for discovery, manufacturing of new materials

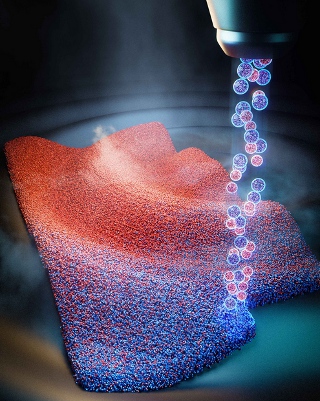

High-throughput combinatorial printing (HTCP) mixes multiple aerosolized nanomaterial inks in a single printing nozzle to create new materials. [Credit: University of Notre Dame]









"It usually takes 10 to 20 years to discover a new material," said Yanliang Zhang, associate professor of aerospace and mechanical engineering at the University of Notre Dame. "I thought if we could shorten that time to less than a year -- or even a few months -- it would be a game changer for the discovery and manufacturing of new materials."

Now Zhang has done just that, creating a novel 3D-printing method that produces materials in ways that conventional manufacturing can't match. The new process mixes multiple aerosolized nanomaterial inks in a single printing nozzle, varying the ink mixing ratio on the fly during the printing process. This method -- called high-throughput combinatorial printing (HTCP) -- controls both the printed materials' 3D architectures and local compositions and produces materials with gradient compositions and properties at microscale spatial resolution.

His research was just published in Nature.

The aerosol-based HTCP is extremely versatile and applicable to a broad range of metals, semiconductors, and dielectrics, as well as polymers and biomaterials. It generates combinational materials that function as "libraries," each containing thousands of unique compositions.

Bringing together combinational materials printing and high-throughput characterization can significantly accelerate materials discovery, Zhang said. His team has already used this approach to identify a semiconductor material with superior thermoelectric properties, a promising discovery for energy harvesting and cooling applications.

In addition to speeding up discovery, HTCP produces functionally graded materials that gradually transition from stiff to soft. This makes them particularly useful in biomedical applications that need to bridge between soft body tissues and stiff wearable and implantable devices.

In the next phase of research, Zhang and the students in his Advanced Manufacturing and Energy Lab plan to apply machine learning and artificial intelligence-guided strategies to the data-rich nature of HTCP in order to accelerate the discovery and development of a broad range of materials.

"In the future, I hope to develop an autonomous and self-driving process for materials discovery and device manufacturing, so students in the lab can be free to focus on high-level thinking," Zhang said.

Source: University of Notre Dame

Published June 2023
