Continental tests ‘highly automated' driving over 6,000 miles in Nevada

Human error is still the greatest risk factor on the roads: Driver mistakes were found to be the cause of over 80% of all accidents involving personal injuries in Germany in 2010, according to the German Federal Statistical Office.

Advanced driver-assistance systems can offer remedies. On the one hand, they can support the driver in demanding and difficult situations. On the other hand, they provide for a little driver freedom during monotonous driving situations. The latter, especially, is a potential field of application for what international automotive supplier Continental calls "highly automated" driving.

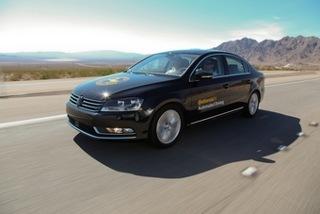

Continental recently completed a two-week endurance test in Nevada that involved more than 6,000 miles of highly automated driving on the state's public roads. Nevada is the first U.S. state to explicitly permit automated driving on public roads.

The highly automated driving concept tested is largely based on the knowledge and experiences acquired through the winner car of the DARPA Urban Challenge in 2007 and during the EU-funded research project HAVEit. It is equipped with close-to-production technologies for monitoring a vehicle's immediate surroundings and actuators for the first time.

A new stereo camera with sensors that can measure the distance and size of potential obstacles, the MK 100 electronically controllable braking system, and an electric power steering (EPS) system were installed. The test also served as an investigation of possible use cases and the determination of the safety-related acceptable operating range of the vehicle when put into fully automated mode.

The equipment in Continental's research vehicle differs from the laser sensors and tailor-made actuators in other highly automated or autonomous vehicles. "The vehicle is able to use close-to-production sensors and logic to detect more complex scenarios and, consequently, is able to relieve drivers of the tedium of monotonous activities, such as driving in traffic jams, by automating," said Matthias Strauß, project engineer for advanced driver-assistance systems in the Advanced Engineering department in Continental's Chassis & Safety Division.

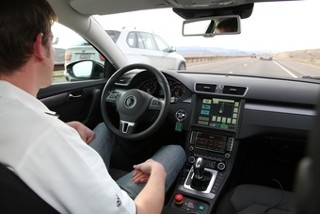

Traffic-jam scenarios were also driven during the test. In situations that exceeded the current capabilities of highly automated driving, such as where road markings could not be detected or if the bends were too tight, the system switched itself off and the driver had to resume control of the vehicle. If the driver failed to react, the vehicle's speed was gradually reduced until it came to a stop.

Continental's sites in Frankfurt, Germany, and Auburn Hills, MI, have combined their know-how to develop and test the system further. In the next step, experiences gained from the Nevada tests will help to enhance advanced driver-assistance system availability. The results also represent an important step on the road toward realizing the vision of accident-free driving.

Source: Continental

Published April 2012
