Honda launches their first V8 engine for boats

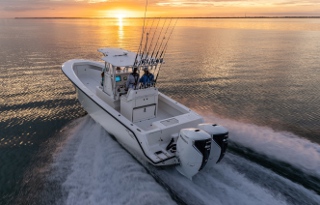

Honda Marine unveiled its first V8 outboard engine, the BF350, at the Genoa International Boat Show in Italy on Sept. 21. The company said their BF350 "will redefine high-performance premium outboard marine engines" by offering the most formidable power yet from a Honda outboard engine while ensuring a perfect balance of reliability and performance.

[All images courtesy: Honda Marine]

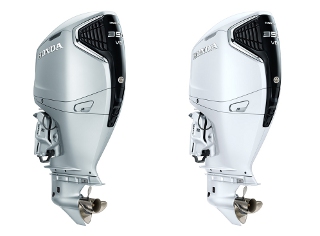

The BF350 is a slim affair featuring a one-motion silhouette. Powered by regular gasoline, it is a 60-degree 5L V8 engine with VTEC (Variable Valve Timing and Lift Electronic Control) technology, already proven on the BF250, 225,150, and 100 outboards. It offers impressively low noise and vibration, while delivering a new distinctive, rich sound and exhilarating performance. The power plant is encased in Aquamarine Silver or Grand Prix White with a very sleek, modern design. Rated power is 350 hp @ 5,500 rpm.

The BF350 will start off in BLAST (Boosted Low Speed Torque) mode, providing instant and powerful acceleration. At constant speeds, ECOmo is engaged, where the engine's fuel optimization system will reduce fuel consumption whenever possible. When extra power is required, VTEC will boost peak power, providing a positive surge of acceleration.

Accompanying the V8 outboard is the all-new BF350 controller. The controller comes in an ergonomic form to support various grips and operations, has an intuitive five-button multi-function panel, and a high-visibility neutral position indicator, all enhanced in a leather grain for comfort. Incorporating iST (Intelligent Shift and Throttle), owners have precise electronic engine response to control multiple engines with a single lever; providing simple operation for smooth, stress-free boating. iST is compatible with twin-, triple-, and quad-engine configurations.

The BF350 also boasts a number of smart features intended to enhance the customer experience and improve ease of use, including Cruise Control, Tilt Limit, and Trim Support.

The Cruise Control feature delivers smooth sailing by expanding the adaptive speed range of the conventional trolling control function. Select Cruise Control on the display and adjust cruising speed on the control head when desired.

Tilt Limit features a default trim angle to avoid manually trimming the engine when docking up. Push the button, and the engine automatically angles itself to the pre-set height to avoid scratches to the boat or engine. Automatic Tilt provides owners with an automatic full tilt at a double push of the button.

Trim Support has three customizable pre-sets to automatically trim the engine to get you on the plane while assisting with fuel economy. The integrated O2 sensor adjusts fuel consumption based on the oxygen levels on the exhaust gas, detecting and optimizing combustion efficiency. Both the Trim Support and O2 sensor are engineered to optimize fuel consumption without compromising engine performance.

Learn more at marine.honda.com/outboards/models/highpower/BF350.

Source: Honda Marine

Published September 2023
