Researchers convert CO2 from the atmosphere into valuable carbon nanofibers

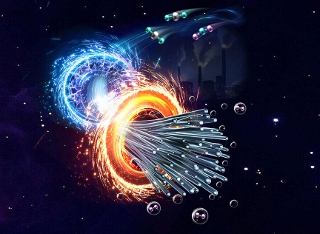

A new process converts carbon dioxide from the atmosphere into valuable carbon nanofibers. Using tandem electrocatalytic (blue ring) and thermocatalytic (orange ring) reactions to convert the CO2 (teal and silver molecules) plus water (purple and teal) into "fixed" carbon nanofibers (silver), it makes hydrogen gas (H2, purple) as a beneficial byproduct. [Credit: Zhenhua Xie/Brookhaven National Lab and Columbia University; Erwei Huang/Brookhaven National Lab]









Scientists at the U.S. Department of Energy's (DOE) Brookhaven National Laboratory (BNL) and Columbia University have developed a way to convert carbon dioxide (CO2), a greenhouse gas, into carbon nanofibers, materials with a wide range of unique properties and many potential long-term uses. Their strategy uses tandem electrochemical and thermochemical reactions run at relatively low temperatures and ambient pressure.

As the scientists describe in the journal Nature Catalysis, this approach could lock carbon away in a useful solid form successfully to offset or even achieve negative carbon emissions.

"You can put the carbon nanofibers into cement to strengthen the cement," said Jingguang Chen, a professor of chemical engineering at Columbia with a joint appointment at Brookhaven Lab who led the research. "That would lock the carbon away in concrete for at least 50 years, potentially longer. By then, the world should be shifted to primarily renewable energy sources that don't emit carbon."

As a bonus, the process also produces hydrogen gas (H2), a promising alternative fuel that, when used, creates zero emissions.

Capturing or converting carbon
The idea of capturing CO2 or converting it to other materials to combat climate change is not new, but simply storing CO2 gas can lead to leaks. Additionally, many CO2 conversions produce carbon-based chemicals or fuels that are used right away, which releases CO2 right back into the atmosphere.

"The novelty of this work is that we are trying to convert CO2 into something that is value-added but in a solid, useful form," Chen said.

Such solid carbon materials -- including carbon nanotubes and nanofibers with dimensions measuring billionths of a meter -- have many appealing properties, including strength and thermal and electrical conductivity. However, it's no simple matter to extract carbon from carbon dioxide and get it to assemble into these fine-scale structures. One direct, heat-driven process requires temperatures in excess of 1,000 C.

"It's very unrealistic for large-scale CO2 mitigation," Chen said. "In contrast, we found a process that can occur at about 400 degrees Celsius, which is a much more practical, industrially achievable temperature."

The electrocatalytic-thermocatalytic tandem strategy for CNF production circumvents thermodynamic constraints by combining the co-electrolysis of CO2 and water into syngas (CO and H2) with a subsequent thermochemical process under mild conditions (370 to 450 C, ambient pressure). This yields a high CNF production rate. [Credit: Zhenhua Xie/Brookhaven National Lab and Columbia University]









The tandem two-step
The trick was to break the reaction into stages and to use two different types of catalysts -- materials that make it easier for molecules to come together and react.

"If you decouple the reaction into several sub-reaction steps, you can consider using different kinds of energy input and catalysts to make each part of the reaction work," said Brookhaven Lab and Columbia research scientist Zhenhua Xie, lead author on the paper.

The scientists started by realizing that carbon monoxide (CO) is a much better starting material than CO2 for making carbon nanofibers (CNF). Then they backtracked to find the most efficient way to generate CO from CO2.

Earlier work from their group steered them to use a commercially available electrocatalyst made of palladium supported on carbon. Electrocatalysts drive chemical reactions using an electric current. In the presence of flowing electrons and protons, the catalyst splits both CO2 and water (H2O) into CO and H2.

For the second step, the scientists turned to a heat-activated thermocatalyst made of an iron-cobalt alloy. It operates at temperatures around 400 C, significantly milder than a direct CO2-to-CNF conversion would require. They also discovered that adding a bit of extra metallic cobalt greatly enhances the formation of the carbon nanofibers.

"By coupling electrocatalysis and thermocatalysis, we are using this tandem process to achieve things that cannot be achieved by either process alone," Chen said.

Recycle-ready, carbon-negative
"Transmission electron microscopy (TEM) analysis conducted at CFN revealed the morphologies, crystal structures, and elemental distributions within the carbon nanofibers both with and without catalysts," said CFN scientist and study co-author Sooyeon Hwang.

The images show that, as the carbon nanofibers grow, the catalyst gets pushed up and away from the surface. That makes it easy to recycle the catalytic metal, Chen said.

"We use acid to leach the metal out without destroying the carbon nanofiber, so we can concentrate the metals and recycle them to be used as a catalyst again," he said.

This ease of catalyst recycling, commercial availability of the catalysts, and relatively mild reaction conditions for the second reaction all contribute to a favorable assessment of the energy and other costs associated with the process, the researchers said.

If these processes are driven by renewable energy, the results would be truly carbon-negative, opening new opportunities for CO2 mitigation.

Source: Brookhaven National Laboratory

Published February 2024
