Stratasys to test 3D-printed material performance on moon

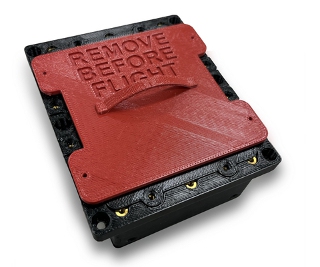

FDM Antero 840CN03 radiation experiment housing with red UTLEM 9085 "Remove Before Flight" cover to protect the test samples during transport and installation. [Source: Stratasys]









Polymer 3D-printing company Stratasys recently announced it will provide 3D-printed materials for an upcoming lunar mission to test the materials' performance on the surface of the moon. The experiments are part of Aegis Aerospace's first Space Science & Technology Evaluation Facility mission (SSTEF-1).

SSTEF is a commercial space testing service. It was developed by Aegis Aerospace in Houston, TX, under NASA's Tipping Point program to provide R&D services on the lunar surface. The SSTEF-1 project focuses on technology development for space infrastructure and capabilities for the moon and near-earth space. The Stratasys experiments are sponsored by Northrop Grumman.

In this moon mission, Stratasys will provide 3D-printed samples that will be brought to the lunar surface by an unmanned lander in a carrier structure 3D-printed by Stratasys. Three materials will be the focus of two different experiments led by Northrop Grumman.

The first experiment assesses the performance of a sample coupon part made with Stratasys' Antero 800NA Fused Deposition Modeling (FDM) filament filled with tungsten. Antero 800NA is a high-performance PEKK-based thermoplastic with excellent mechanical properties, chemical resistance, and low outgassing characteristics. Adding tungsten is intended to provide shielding against harmful radiation such as gamma rays or X-rays.

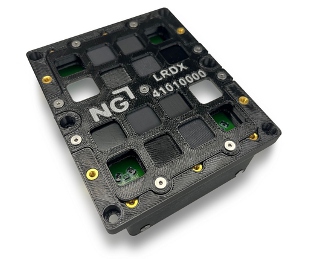

FDM Antero 840CN03 radiation experiment housing containing radiation shielding test samples, including FDM Antero 800NA tungsten-filled material (dark gray) and SL Somos PerFORM material (white). [Source: Stratasys]









The second passive experiment is designed to see how 3D-printed materials perform in space. It will include Antero 840CN03 FDM filament, which features ESD properties for use with electronics and was used on the Orion spacecraft. The experiment will also include a new ESD photopolymer manufactured by Stratasys partner Henkel for use with Stratasys' Origin One 3D printers and designed for high-heat environments. This experiment will subject coupon samples of the 3D-printed materials to moon dust, low pressure that can lead to outgassing, and the rapid temperature swings that result from virtually no atmosphere on the moon.

"This set of experiments will help us understand how to fully leverage 3D printing to keep people and equipment safe as we travel to the moon and beyond," said Stratasys Chief Industrial Business Officer Rich Garrity.

Parts will be brought to the lunar surface by an unmanned lander in a Stratasys 3D-printed carrier structure made from ULTEM 9085 thermoplastic, which is a material also commonly used in commercial aircraft interiors.

Source: Stratasys

Published March 2024
