Bechtel Plant Machinery selects Velo3D's metal printer to bolster U.S. Navy supply chain

Velo3D recently announced Bechtel Plant Machinery Inc. (BPMI) has selected a fully integrated metal additive manufacturing solution from the company to produce parts for the U.S. Naval Nuclear Propulsion Program.

The Sapphire XC large-format printer, calibrated for stainless steel 415, will be operated by ATI at its new additive manufacturing facility outside Fort Lauderdale, FL. Earlier this year, BPMI awarded a contract to ATI to support development of highly engineered part solutions for advanced manufacturing methods, including metal additive manufacturing. The partners will use the printer to produce parts previously produced through casting, reducing lead times for mission-critical parts and streamlining the supply chain.

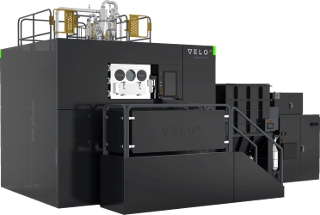

Velo3D Sapphire XC large-format metal laser powder bed fusion machine. [Credit: ]Velo3D]





Velo3D's technology was developed in the United States and includes a fully integrated software and hardware solution. The company is headquartered in the United States, including its research and development, customer support, and manufacturing operations.

Conventional 3D printers often struggle to produce parts with overhanging features beyond 45 degrees without support structures. However, Velo3D's proprietary technology offers the ability to produce parts with a wide variety of geometries with few-to-no supports. This capability has allowed the company to address applications that other 3D-printing technologies cannot. In addition to using this technology to 3D print parts that are traditionally cast, Velo3D's technology also enables more innovative designs to replace components currently in use. Furthermore, this technology can be scaled to additional machines across multiple locations and operators.

"Printers with larger build volumes and the ability to print with less support structures are ideal for U.S. Naval Nuclear Propulsion Program applications," said Nathan Weiderspahn, BPMI executive manager, Industrial Base Management.

The U.S. Navy currently operates approximately 300 vessels, many of which were commissioned decades ago. They, along with the broader U.S. Department of Defense, have actively incorporated additive manufacturing, acknowledging its efficiency in supporting its aging equipment, enhancing warfighter readiness, and reducing replacement part lead times. Additive manufacturing accomplishes this by enabling distributed supply chains and digital inventories where manufacturers can produce parts within spec across any similar printer calibrated for the same metal alloy. ATI's new secure facility, along with Velo3D's fully integrated solution, are significant steps forward in advancing the Navy's maintenance and operational capabilities.

"ATI will be able to more easily additively produce complex parts with fewer support structures, at lower angles, and larger sizes than ever before," said Joe Thompson, general manager of ATI Additive Manufacturing Products. "This enables us to broaden the scope of possible part designs for our defense and aerospace customers, enabling higher performance and better quality. The business opportunity represented by these previously unproduceable part designs is significant."

BPMI's new Sapphire XC metal laser powder bed fusion printer is the first such printer from Velo3D calibrated for stainless steel 415, an alloy of iron, chromium, and nickel that provides good tensile strength and corrosion resistance at a range of temperatures. The machine uses eight 1-kW lasers for faster printing at scale. Build volume is up to 23.6 in. diameter (600 mm) x 23.6 in. tall (600 mm) for the Sapphire XC, and 23.6 in. diameter (600 mm) x 39.4 in. tall (1,000 mm) with the Sapphire XC 1MZ machine. The machine includes Flow print preparation software and Assure quality monitoring and control software.

Source: Velo3D

Published March 2024
