Innovative composite accelerometer is built for extreme environments

Researchers from Delft University of Technology recently announced the development of a novel surface micromachined accelerometer. This innovative device leverages a silicon carbide-carbon nanotube (SiC-CNT) composite, offering unprecedented durability and performance in harsh environments.

The demand for microelectromechanical systems (MEMS) that are resilient to harsh environments is growing. Silicon-based MEMS struggle under extreme conditions, limited by their performance at elevated temperatures. Silicon carbide (SiC) stands out as a promising solution, offering unmatched thermal, electrical, and mechanical advantages for creating enduring MEMS.

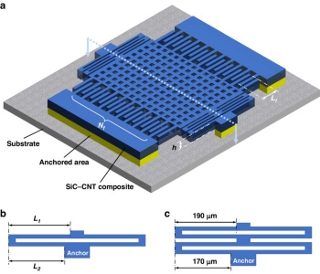

A schematic of the accelerometer: (a) Typical structure of a MEMS comb-type accelerometer, (b) single-meandered spring, (c) double-meandered spring. [Credit: Microsystems & Nanoengineering]









Despite its potential, SiC MEMS development is challenged by the intricacies of bulk micromachining, demanding new strategies to harness SiC's strengths in crafting robust devices. In response, scientists have crafted an accelerometer using a novel silicon carbide-carbon nanotube (SiC-CNT) composite capable of enduring severe environmental stress. Published in Microsystems & Nanoengineering in April 2024, this research presents a revolutionary material fusion, merging SiC's durability with the versatility and conductive qualities of CNTs to create a comb-type capacitive accelerometer.

The team's approach involved growing a CNT array and densifying it with amorphous SiC via chemical vapor deposition, creating a material with outstanding mechanical strength, superior electrical conductivity, and high thermal stability. This SiC-CNT composite enables the production of high-aspect-ratio structures, crucial for the sensitivity and efficiency of MEMS devices, while ensuring robust performance in extreme temperatures and corrosive environments.

According to the published research, "The Young's modulus of the CNTs increases by 3 orders of magnitude after they are filled with a-SiC" and "The conductivity of the SiC-CNT composite was 107 times greater than that of the a-SiC filler material." The research concluded: "The high-temperature test showed that the composite has the potential to be applied in harsh environments. The measured sensitivity of the accelerometer is 0.14 fF/g (based on an indirect measurement)."

Professor Sten Vollebregt, the lead researcher, stated, "This advancement not only overcomes longstanding fabrication challenges but also significantly enhances the mechanical and electrical properties of MEMS devices. Our SiC-CNT composite accelerometers are poised to revolutionize the deployment of MEMS in environments where conventional devices simply cannot survive."

The fabricated capacitive accelerometer showcased the composite's potential in MEMS applications, particularly for devices requiring operation in high-temperature, high-radiation, and corrosive environments. Such accelerometers are critical for aerospace, automotive, and industrial monitoring systems, where reliability under extreme conditions is paramount.

Source: Aerospace Information Research Institute, Chinese Academy of Sciences

Published April 2024
