Weird science: Researchers discover light can vaporize water -- without heat

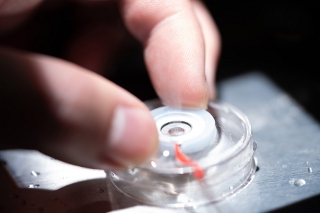

Researchers at MIT have discovered a new phenomenon: Light can cause evaporation of water from its surface without the need for heat. Pictured is a lab device designed to measure the newly named "photomolecular effect" using laser beams. [Credit: Photo by Bryce Vickmark]









By David L. Chandler, MIT

It's the most fundamental of processes -- the evaporation of water from the surfaces of oceans and lakes, the burning off of fog in the morning sun, and the drying of briny ponds that leaves solid salt behind. Evaporation is all around us, and humans have been observing it and making use of it for as long as we have existed.

And yet, it turns out, we've been missing a major part of the picture all along.

In a series of painstakingly precise experiments, a team of researchers at MIT has demonstrated that heat isn't alone in causing water to evaporate. Light, striking the water's surface where air and water meet, can break water molecules away and float them into the air, causing evaporation in the absence of any source of heat.

The astonishing new discovery could have a wide range of significant implications. It could help explain mysterious measurements over the years of how sunlight affects clouds, and therefore affect calculations of the effects of climate change on cloud cover and precipitation. It could also lead to new ways of designing industrial processes such as solar-powered desalination or drying of materials.

The findings, and the many different lines of evidence that demonstrate the reality of the phenomenon and the details of how it works, are described in the journal PNAS (April 32, 2024), in a paper by Gang Chen, the Carl Richard Soderberg Professor of Power Engineering, postdocs Guangxin Lv and Yaodong Tu, and graduate student James Zhang.

The authors say their study suggests that the effect should happen widely in nature -- everywhere from clouds to fogs to the surfaces of oceans, soils, and plants -- and that it could also lead to new practical applications, including in energy and clean water production. "I think this has a lot of applications," Chen says. "We're exploring all these different directions. And of course, it also affects the basic science, like the effects of clouds on climate, because clouds are the most uncertain aspect of climate models."

A newfound phenomenon
The new work builds on research reported last year that described this new "photomolecular effect" but only under very specialized conditions: on the surface of specially prepared hydrogels soaked with water. In the new study, the researchers demonstrate that the hydrogel is not necessary for the process; it occurs at any water surface exposed to light, whether it's a flat surface like a body of water or a curved surface like a droplet of cloud vapor.

Because the effect was so unexpected, the team worked to prove its existence with as many different lines of evidence as possible. In this study, they report 14 different kinds of tests and measurements they carried out to establish that water was indeed evaporating -- that is, molecules of water were being knocked loose from the water's surface and wafted into the air -- due to the light alone, not by heat, which was long assumed to be the only mechanism involved.

One key indicator, which showed up consistently in four different kinds of experiments under different conditions, was that as the water began to evaporate from a test container under visible light, the air temperature measured above the water's surface cooled down and then leveled off, showing that thermal energy was not the driving force behind the effect.

Other key indicators that showed up included the way the evaporation effect varied depending on the angle of the light, the exact color of the light, and its polarization. None of these varying characteristics should happen, because at these wavelengths, water hardly absorbs light at all -- and yet the researchers observed them.

The effect is strongest when light hits the water surface at an angle of 45 degrees. It is also strongest with a certain type of polarization, called transverse magnetic polarization, and it peaks in green light -- which, oddly, is the color for which water is most transparent and thus interacts the least.

Chen and his co-researchers have proposed a physical mechanism that can explain the angle and polarization dependence of the effect, showing that the photons of light can impart a net force on water molecules at the water surface that is sufficient to knock them loose from the body of water. However, they cannot yet account for the color dependence, which they say will require further study.

They have named this the photomolecular effect, by analogy with the photoelectric effect that was discovered by Heinrich Hertz in 1887 and finally explained by Albert Einstein in 1905. That effect was one of the first demonstrations that light also has particle characteristics, which had major implications in physics and led to a wide variety of applications, including LEDs. Just as the photoelectric effect liberates electrons from atoms in a material in response to being hit by a photon of light, the photomolecular effect shows that photons can liberate entire molecules from a liquid surface, the researchers say.

Published May 2024
