World's thinnest lens is only 3 atoms thick, makes use of Fresnel tech

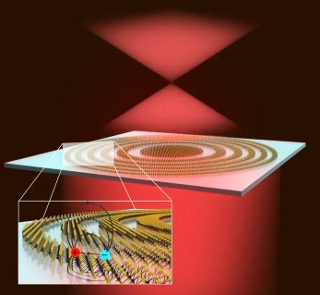

The thinnest lens on Earth, made of concentric rings of a tungsten material, uses excitons to efficiently focus light. The lens is just three atoms thick. The bottom left shows an exciton: an excited electron bound to the positively charged "hole" in the atomic lattice. [Credit: Image by Ludovica Guarneri and Thomas Bauer]









Lenses are used to bend and focus light. Normal lenses rely on their curved shape to achieve this effect, but physicists from the University of Amsterdam and Stanford University have made a flat lens of only three atoms thick that relies on quantum effects. This type of lens could be used in future augmented reality glasses, among other applications.

When you imagine a lens, you probably picture a piece of curved glass. This type of lens works because light is refracted (bent) when it enters the glass and again when it exits, allowing viewers to see things that appear larger or closer than they are. Curved lenses have been used for more than two millennia, allowing us to study the movements of distant planets and stars, to reveal tiny microorganisms, and to improve our vision.

Ludovico Guarneri, Thomas Bauer, and Jorik van de Groep of the University of Amsterdam, together with colleagues from Stanford University in California, took a different approach. Using a single layer of a unique material called tungsten disulphide (WS₂ for short), they constructed a flat lens that is 0.5 mm wide but just 0.0000006 mm (or 0.6 nanometers) thick. This makes it the thinnest lens on Earth.

Rather than relying on a curved shape, the lens is made of concentric rings of WS₂ with gaps in between. This is called a Fresnel (or a zone plate) lens, and it focuses light using diffraction rather than refraction. The size of, and distance between, the rings (compared to the wavelength of the light hitting it) determines the focal length of the lens. The design used here focuses red light 1 mm from the lens.

Quantum enhancement
A unique feature of this lens is that its focusing efficiency relies on quantum effects within WS₂. These effects allow the material to efficiently absorb and re-emit light at specific wavelengths, giving the lens the built-in ability to work better for these wavelengths.

This quantum enhancement works as follows. First, WS₂ absorbs light by sending an electron to a higher energy level. Due to the ultra-thin structure of the material, the negatively charged electron and the positively charged "hole" it leaves behind in the atomic lattice stay bound together by the electrostatic attraction between them, forming what is known as an "exciton." These excitons quickly disappear again by the electron and hole merging together and sending out light. This re-emitted light contributes to the efficiency of the lens.

The scientists detected a clear peak in lens efficiency for the specific wavelengths of light sent out by the excitons. While the effect is already observed at room temperature, the lenses are even more efficient when cooled down. This is because excitons do their work better at lower temperatures.

Augmented reality
Another unique feature of the lens is that while some of the light passing through it makes a bright focal point, most light passes through unaffected. While this may sound like a disadvantage, it actually opens new doors for use in technology of the future.

"The lens can be used in applications where the view through the lens should not be disturbed, but a small part of the light can be tapped to collect information. This makes it perfect for wearable glasses such as for augmented reality," says Jorik van de Groep, one of the authors of a paper on the research.

The researchers are now setting their sights on designing and testing more complex and multifunctional optical coatings whose function (such as focusing light) can be adjusted electrically. "Excitons are very sensitive to the charge density in the material, and therefore we can change the refractive index of the material by applying a voltage," says Van de Groep. The future of excitonic materials is bright.

See "Temperature-Dependent Excitonic Light Manipulation with Atomically Thin Optical Elements" in Nano Letters.

Source: University of Amsterdam

Published June 2024
