Photonic chip integrates sensing and computing for incredibly fast machine vision

Researchers have developed a new intelligent photonic sensing-computing chip that can process, transmit, and reconstruct images of a scene within nanoseconds. [Credit: Wei Wu, Tsinghua University]









Researchers have demonstrated a new intelligent photonic sensing-computing chip that can process, transmit, and reconstruct images of a scene within nanoseconds. This advance opens the door to extremely high-speed image processing that could benefit edge intelligence for machine vision applications such as autonomous driving, industrial inspection, and robotic vision.

Edge computing, which performs intensive computing tasks like image processing and analysis on local devices, is evolving into edge intelligence by adding analysis and decision-making driven by artificial intelligence (AI).

"Capturing, processing, and analyzing images for edge-based tasks such as autonomous driving is currently limited to millisecond-level speeds due to the necessity of optical-to-electronic conversions," said research team leader Lu Fang from Tsinghua University in China. "Our new chip can perform all these processes in just nanoseconds by keeping them all in the optical domain. This could be used to significantly enhance, or even replace, the traditional architecture of sensor acquisition followed by AI post-processing."

In Optica, Optica Publishing Group's journal for high-impact research, the researchers describe the new chip, which they call an optical parallel computational array (OPCA) chip. They show that the OPCA has a processing bandwidth of up to 100 billion pixels and a response time of just 6 nanoseconds, which is about six orders of magnitude faster than current methods. They also used the chip to create an optical neural network that integrates image perception, computation and reconstruction.

"The chip and optical neural network could boost the efficiency of processing complex scenes in industrial inspection and help advance intelligent robot technology to a higher level of cognitive intelligence," said Wei Wu, co-first author of the paper. "We think it could also revolutionize edge intelligence."

Eliminating optical-to-electrical conversions
Machine vision, which uses cameras, image sensors, lighting, and computer algorithms to capture, process, and analyze images for specific tasks, traditionally involves converting optical information into digital electrical signals using sensors. These signals are then transmitted over optical fibers for long-distance data transmission and downstream tasks. However, the frequent conversion between optical and electrical signals along with limited advancements in electronic processors has become a major restriction on improving the speed and processing capacity of machine vision.

"The world is entering an AI era, but AI is very time and energy exhaustive," said Fang. "Meanwhile, the growth of edge devices, such as smartphones, intelligent cars, and laptops has resulted in explosive growth of image data to be processed, transmitted, and displayed. We are working to advance machine vision by integrating sensing and computing in the optical domain, which is particularly important for edge computing and for enabling more sustainable AI applications."

The challenge in performing both image acquisition and analysis on the same chip in the optical domain is finding a way to convert the free-space spatial light used for imaging into an on-chip guided light wave. The researchers achieved this by designing a chip that consists of a sensing-computing array of dedicated designed ring resonators that convert a free-space optical intensity image -- a 2D representation of a scene's light intensity -- into a coherent light signal that can then be guided on the chip. A micro-lens array enhances the process by focusing the scene onto the OPCA chip.

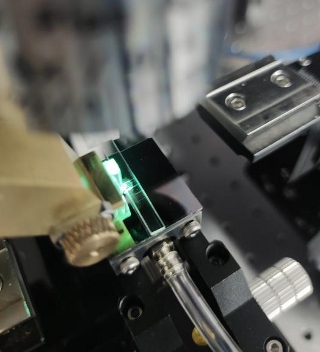

The photo shows light being focused through the microlens array onto the micro-ring in the OPCA chip test system. [Credit: Wei Wu, Tsinghua University]









The chip's architecture allowed the researchers to create an end-to-end, multi-wavelength optical neural network to couple the on-chip modulated light into a large-bandwidth optical waveguide, where the modulated light is added together spectrally. The multispectral optical outputs can then be used for classification tasks or to create an all-optical reconstruction of the image.

"Because each sensing-computing element of this chip is reconfigurable, they can each operate as a programmable neuron that generates light modulation output based on the input and weight," said Fang. "The neural network connects all the sensing-computing neurons with a single waveguide, facilitating an all-optical, full connection between the input information and the output."

The researchers say that for practical use, the optical neural network's processing capacity would need to be increased to effectively handle increasingly complex and realistic intelligent tasks. The form factor of the OPCA chip and overall form factor also need to be minimized.

Sources: Optica Publishing Group, Tsinghua University

Published June 2024
