High-efficiency colored solar panels for buildings may make deployment more attractive

The team of researchers from Fraunhofer ISE -- (from left to right) Dr. Thomas Kroyer, Dr. Oliver Höhn, and Andreas Wessels -- that developed new colored solar panel technology. [Credit: © Piotr Banczerowski]









The energy transition in Germany, Europe, and across the world is driving robust demand for solar panels. Alongside high energy yields, aesthetics and acceptance are also increasingly important factors. To accommodate these trends, a team of researchers from the Fraunhofer Institute for Solar Energy Systems ISE in Germany has developed an innovative solar facade element that can be incorporated into a building's exterior practically invisibly and without any significant loss of efficiency.

There are two crucial factors with solar panels for building-integrated photovoltaic use: First, they need to behave optically like a traditional colored element, and second, they should still be able to generate as much power as possible. To meet this challenge, the researchers looked to nature for inspiration and found it in morpho butterflies.

"The 3D photonic structures on a morpho butterfly's wings allow for an intensive, angularly stable colored impression thanks to a fundamentally low-loss interference effect," says researcher Dr. Thomas Kroyer.

Following this biological model, the experts from Fraunhofer ISE succeeded in using a vacuum process to apply a similar surface structure to the back of the glass covering their solar panels. Depending on the fine structure, this method can be used to produce glass coverings in various colors.

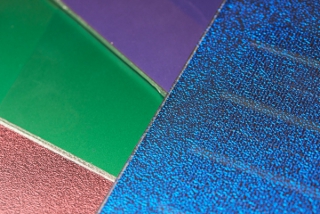

The innovative solar panels can be manufactured in various colors. [Credit: © Piotr Banczerowski]





The coating system for colored solar panels has now surpassed the biological model in terms of its properties. "Independent measurements confirm that the colored solar panels with MorphoColor^® coatings can achieve about 95 percent of the power of a comparable uncoated panel," says researcher Andreas Wessels. That makes this technology far superior to all other comparable technologies available on the market.

VIDEO: High-efficiency, colored solar panels win the Joseph von Fraunhofer Prize 2024. [Credit: Fraunhofer Institute]

The plug-in solution can be used with all standard commercially available solar technologies as well as those foreseeable in the future, plus it can be manufactured industrially at low cost. Cell and panel technologies with a uniform appearance are an especially good fit. These include rear contact solar cells and the shingle matrix technology also developed at Fraunhofer ISE -- an assembly method reminiscent of a brick wall.

"In shingle matrix technology, the conductive adhesive bonding of the solar cells eliminates the need for reflective metallic connectors between the cells, which leads to a homogeneous appearance. That means the solar cell technology remains completely invisible behind the colored layer, and that, in turn, enables aesthetically pleasing and complete visual integration into facades or roofs," says researcher Dr. Oliver Höhn.

The MorphoColor trademark is already registered in the EU, Switzerland, China, the United States, Japan, and South Korea. A license was granted in 2023 to Switzerland-based Megasol Energie AG, a leading European producer of solar panels and in-roof and facade installation systems that is currently establishing the technology on the market.

Integration of solar panels into vehicles is another promising field of development. Fraunhofer ISE presented glass car roofs and hoods with integrated MorphoColor solar panels at the IAA automotive trade show. All of the major German car manufacturers showed great interest in the new technology.

Source: Fraunhofer Institute for Solar Energy Systems ISE

Published June 2024
