NASA's Psyche spacecraft fires up its sci-fi-worthy special new thrusters

The spacecraft is already beyond the distance of Mars and is using ion propulsion to accelerate toward a metal-rich asteroid, where it will orbit and collect science data.

This artist's concept depicts NASA's Psyche spacecraft headed to the metal-rich asteroid Psyche in the main asteroid belt between Mars and Jupiter. The spacecraft launched in October 2023 and will arrive at its destination in 2029. [Credit: NASA/JPL-Caltech/ASU]









NASA's Psyche spacecraft passed its six-month checkup with a clean bill of health, and there's no holding back now. Navigators are firing its futuristic-looking electric thrusters, which emit a blue glow, nearly nonstop as the orbiter zips farther into deep space.

The spacecraft launched from NASA's Kennedy Space Center in Florida atop a SpaceX Falcon Heavy on Oct. 13, 2023. After leaving our atmosphere, Psyche made the most of its rocket boost and coasted beyond the orbit of Mars.

For the next year, the spacecraft will be in what mission planners call "full cruise" mode, when its electric thrusters take over and propel the orbiter toward the asteroid belt. The thrusters work by expelling charged atoms (or ions) of xenon, emitting a brilliant blue glow that trails behind the spacecraft.

They are part of Psyche's incredibly efficient solar electric propulsion system, which is powered by sunlight. The thrust created by the ionized xenon is gentle, but it does the job. Even in full cruise mode, the pressure exerted by the thrusters is about what you'd feel holding three quarters in your hand.

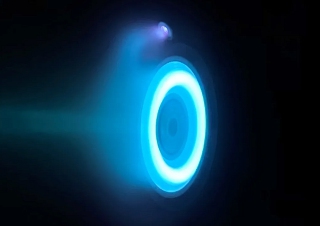

This photo captures an operating electric thruster identical to those being used to propel NASA's Psyche spacecraft. The blue glow comes from the charged atoms (ions) of xenon. [Credit: NASA/JPL-Caltech]





The orbiter is now more than 190 million miles away and moving at a clip of 23 miles/sec, relative to Earth. That's about 84,000 mph. Over time, with no atmospheric drag to slow it down, Psyche will accelerate to speeds of up to 124,000 mph.

The spacecraft will arrive at the metal-rich asteroid Psyche in 2029 and will make observations from orbit for about two years. The data it collects will help scientists better understand the formation of rocky planets with metallic cores, including Earth. Scientists have evidence that the asteroid, which is about 173 miles across at its widest point, may be the partial core of a planetesimal, the building block of an early planet.

Clean bill of health
The flight team used Psyche's first 100 days in space to conduct a full checkout of all spacecraft systems. All of the engineering systems are working just as expected, and the three science instruments have been operating without a hitch. The magnetometer is working so well that it was able to detect an eruption of charged particles from the Sun, as did the gamma-ray and neutron spectrometer. This past December, the twin cameras on the imaging instrument also captured their first images.

"Until this point, we have been powering on and checking out the various pieces of equipment needed to complete the mission, and we can report they are working beautifully," said Henry Stone, Psyche project manager at NASA's Jet Propulsion Laboratory in Southern California, which manages the mission. "Now we are on our way and looking forward to an upcoming close flyby of Mars."

That's because the spacecraft's trajectory will bring it back toward the Red Planet in the spring of 2026. The spacecraft will power down the thrusters as it coasts toward Mars, using the planet's gravity to slingshot itself out. From there, the thrusters return to full cruise mode. Next stop: the asteroid Psyche.

In the meantime, the Deep Space Optical Communications technology demonstration aboard the spacecraft will keep on testing its mettle. The experiment already surpassed expectations when, in April, it transmitted test data from over 140 million miles away at a rate of 267 Mbps to a downlink station on Earth -- a bit rate comparable to broadband internet download speeds.

More about the mission
Arizona State University leads the Psyche mission. A division of Caltech in Pasadena, CA, JPL is responsible for the mission's overall management, system engineering, integration and test, and mission operations. Maxar Technologies in Palo Alto, CA, provided the high-power solar electric propulsion spacecraft chassis.

Psyche is the 14th mission selected as part of NASA's Discovery Program, which is managed by the agency's Marshall Space Flight Center in Huntsville, AL. NASA's Launch Services Program, based at Kennedy, managed the launch service.

Learn more and follow the Psyche mission at jpl.nasa.gov/missions/psyche.

Source: NASA's Jet Propulsion Laboratory

Published June 2024
