Rolls-Royce developing 10-cylinder diesel hybrid systems for military vehicles

Rolls-Royce's Power Systems division is expanding its mtu engine program for military land vehicles to include a hybrid powerpack for special tactical requirements and a 10-cylinder, over 1,100-kW power output version of the mtu Series 199, which has been extremely successful with NATO forces. Both concepts made their debut at the Eurosatory defense trade fair in Paris, France, in June.

"Future armored military land vehicles will require more power for propulsion and on-board power supply for the electronic systems," said Knut Muller, senior vice president Global Governmental Business at Rolls-Royce Power Systems. "At the same time, they will be designed for a different tactical approach in the field. Our future mtu propulsion solutions for this application take both of these requirements into account."

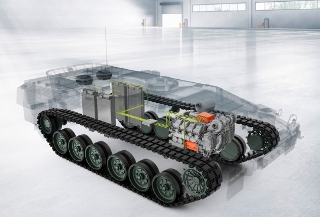

The tank drive becomes hybrid: Rolls-Royce's mtu hybrid drive concept for military land vehicles sports a high-performance diesel engine combined with battery-electric propulsion to give tactical vehicles new capabilities in operations. [Credit: Rolls-Royce Power Systems]









Electrification and hybridization will give tactical vehicles new capabilities in the field. Rolls-Royce's new mtu hybrid drive combines the advantages of a high-performance diesel engine with those of a battery-electric drive. The highly integrated propulsion system requires comparatively little installation space in the vehicle in order to maximize the volume available for equipment and crew. The core of the solution is a highly mobile and extremely compact drive solution, taking into account increasing cost pressure, tight budgets, and the need for significantly larger vehicle fleets.

For quiet operation, for example in a concealed position, the high-performance batteries previously charged in diesel mode supply the vehicle's electrical and electronic systems. This is done without the noise and thermal footprint of the diesel engine -- and over a longer period of time. This makes the vehicle more difficult to locate for enemy reconnaissance. The so-called "anti-idling" mode not only ensures better camouflage of the vehicle, but also significantly reduces fuel consumption when the vehicle is on standby. The range of the vehicles and the downstream logistics chain for refueling the vehicles are optimized.

The advantages of the mild hybridization are also demonstrated by the combined drive on slow journeys, when the vehicle tracks generate little noise. The noise generated by the drive is reduced to a minimum, making it considerably more difficult to detect the vehicle. Rolls-Royce uses a specially developed and customized silencer in combination with the hybrid main propulsion.

In combined operation, the electric propulsion also serves as a booster for highly dynamic acceleration, noise-reduced low-speed driving, or even high-speed driving. "This allows us to utilize the advantages of hybridization in all operating modes," said Muller.

"This propulsion concept will expand the operational possibilities of future tracked armored vehicles in a way that was previously hardly imaginable," said Christian Wolf, head of Development for Military Engines and Systems at Rolls-Royce Power Systems. "For the first time, vehicle manufacturers will be able to realize completely new vehicle concepts, whereby the hybrid concept can, in principle, be implemented with any engine series from the mtu military propulsion program."

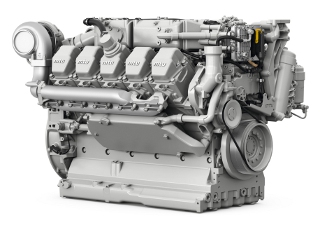

The future 10-cylinder version of the mtu Series 199 for military land vehicles will have an output of over 1,100 kW. The concept will be the top model in the series, which will be able to power armored vehicles weighing up to 70 tons. [Credit: Rolls-Royce Power Systems]









An engine series that has proven itself in the field is getting a new generation. The mtu Series 199 with outputs from 260 to 800 kW is well known in many military land defense programs and has proven itself in all extreme climatic conditions in more than 15 countries. With the future 10-cylinder variant, the 199 series concept will cover a power range up to 1,100 kW and will also be able to power vehicles weighing 50 to 70 tons. The logistical uniformity, with identical components within this engine family from the 6-cylinder to the 10-cylinder variants, will help the armed forces to significantly reduce their logistics costs.

Wolf said an output increase to 1,200 kW is on the horizon.

Thanks to the modular design principle of the mtu Series 199 and its compact dimensions, the 10-cylinder engine can be used not only for new vehicles but also for the repowering of existing vehicles. The 10-cylinder version will set new standards in terms of power density, compact design, and, above all, already available add-on parts such as hydraulic units, air compressors, and generators for power generation. This will significantly simplify vehicle integration into a Powerpack.

The 10-cylinder engine has numerous product features in common with the 6- and 8-cylinder models of the mtu Series 199, which have made the Series 199 the best-selling engine series for military vehicles in its class: high power density with a small design volume; fast response; configurable to vehicle requirements (for example, with a generator or other add-ons); a wide range of options for power takeoffs; and low lifecycle costs due to long maintenance intervals.

The mtu Series 199 has a history of success behind it, with around 4,000 units produced since 2000. The 6- and 8-cylinder variants are used, for example, in the Boxer 8x8 wheeled vehicle, the tracked vehicles based on the ASCOD platform; the Ajax family vehicles; the next generation of U.S. combat vehicles such as the M10 Booker; and the Borsuk infantry fighting vehicle.

Source: Rolls-Royce Power Systems

Published June 2024
