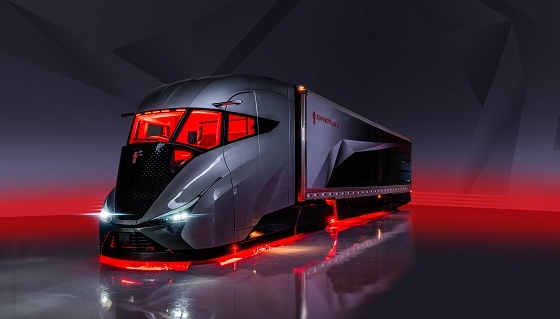

Kenworth's SuperTruck 2 surpassed its program goals by reducing weight and improving miles per gallon with a diesel hybrid powertrain and significant aerodynamic improvements. [Credit: All images courtesy of Kenworth]
Kenworth debuted its SuperTruck 2 demonstrator vehicle at the ACT Expo in Las Vegas in May. It was developed over a six-year period as part of a collaboration with the Department of Energy's (DOE) SuperTruck program, designed to challenge truck makers to improve freight efficiency using a diesel engine as the main power source. The project was the result of a joint investment by the DOE and PACCAR Inc., the parent company of Kenworth and Peterbilt.
"The goal was a 100% freight-efficiency improvement over our 2009 Kenworth T660, which at the time was arguably the most fuel-efficient truck in the industry. We surpassed the performance of that model to improve efficiency by up to 136%," said Jim Walenczak, general manager of Kenworth and PACCAR vice president. "This was realized through a combination of improving fuel efficiency up to 12.8 mpg while reducing our combination weight by more than 7,000 pounds. The result was the ability to haul more payload with an ultra-fuel-efficient tractor-trailer combination. SuperTruck 2 provided us with the opportunity to investigate new technologies in an early stage. We learned what worked and what didn't. As a result, we are able to commercialize new technologies much quicker than we would have otherwise."
Kenworth's SuperTruck 2 utilizes a PACCAR MX-11 engine rated at 440 hp, which is driven through a PACCAR TX-12 automated transmission. In addition, the truck features a 48-V electric generator.
The unique look of the Kenworth is a real attention getter, but the powertrain and driver amenities are just as impressive.
"We started with an ideal aerodynamic shape when we started the design of SuperTruck 2," said Joe Adams, Kenworth's chief engineer. "At the start of the project, we asked ourselves, 'What does the next-generation vehicle for long-haul transportation look like?' What we produced pushes the limits in reducing aerodynamic drag while it also incorporates a new powertrain. But, with everything Kenworth, we wanted the SuperTruck 2 to embody 'The Driver's Truck.' The result was a systematic approach to developing a futuristic-looking, yet relevant, vehicle with technologies that have the potential to be refined and commercialized."
From an engine and transmission standpoint, Kenworth's SuperTruck 2 utilizes a PACCAR MX-11 engine, rated at 440 hp, which is driven through a PACCAR TX-12 automated transmission. In addition, the truck features a 48-V electric generator. This creates a "mild" hybrid system and leverages next-gen lithium-ion batteries. The batteries are re-charged through regenerative braking. This allows Kenworth's SuperTruck 2 to operate electric fans, electric steering, and power for electric coolant and HVAC pumps, which were previously mechanically driven. The engine fan alone can draw up to 80 hp.
The hybrid system also provides an overnight engine-off "hoteling" solution. In addition, the 48-V generator powers the exhaust heater in the in-house-developed close-coupled aftertreatment system, which demonstrated CARB 2027 ultra-low NOx compliancy.
The SuperTruck 2 team managed a parallel project for energy-efficiency testing by combining a PACCAR MX-11-based engine, the mild hybrid-based 48-V auxiliaries, and energy waste recovery to bench test a program record 55.7% engine efficiency. "We did this while keeping in mind the technologies we developed needed to be commercially viable," said Maarten Meijer, PACCAR's senior engineering manager for advanced technology. "Today's modern diesel engine demonstrates around 47% efficiency. Reaching 55.7% was a major step forward and could only be done by applying new technologies that had not been explored until today. To put that efficiency number into perspective, if this engine were to go into production, it would lead to a 10% fuel efficiency improvement. That's an astonishing number."

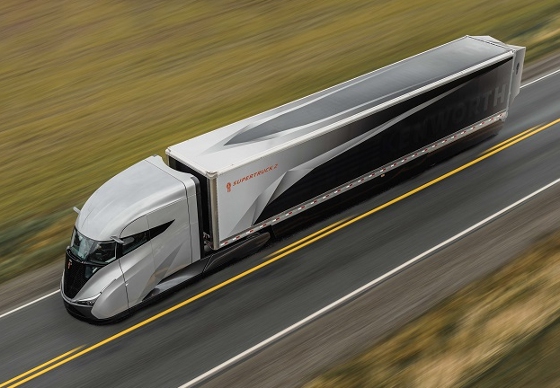

Kenworth's SuperTruck 2 has a bullet-train look featuring a center-driver layout.
The unique look of Kenworth's SuperTruck 2 features a "center driver" cab, along with a new sleeper compartment. It's a look that resembles a bullet train. "We wanted to push this beyond just a demonstrator truck," said Jonathan Duncan, Kenworth's design director. "We wanted to show something dynamic and what the future of Kenworth might look like. Our headlamps take up the entire front fender of the truck. It's striking -- you can't miss it as it's going down the road."
Kenworth says the aerodynamic design was enabled thanks, in part, by the location of the powertrain content, which fits between the frame rails. This also allowed the engine to be lowered and placed behind the front axle. A reverse-splayed chassis allowed the engineering team to narrow the front of the truck and fully enclose the wheels within the bodywork. The entire hood and the chassis fairings were mounted directly to the cab, and they move with the entire cab as one unit. A variable suspension system was developed to customize ride height and optimize aerodynamics -- Kenworth's SuperTruck 2 can be raised over rough roads to avoid obstacles, then brought back down when running over smoother interstates. Combined, the sleekness means a 48% reduction in drag as compared to Kenworth's baseline vehicle.
Even though SuperTruck 2 is powered by a diesel engine, Kenworth is thinking toward the future. The overall layout was designed to be powertrain agnostic. To support zero and near-zero emission solutions, the truck can efficiently package fuel cells, hydrogen tanks, natural gas tanks, or batteries without changing the basic cab.
VIDEO Kenworth SuperTruck 2.
Enabling more payload was a critical element in the design for the Kenworth engineering team, which also utilized a design-specific trailer to go with the tractor. The combination came in at 26,100 lb -- 7,100 lb less than a typical tractor-trailer configuration (4,100-lb savings on the tractor; 3,000 lb on the trailer).
"These savings would give a fleet the option of running lighter with the same amount of goods they'd normally put in a trailer, or they could add 7,100 more pounds of payload," said Adams. "There were a lot of things that contributed to weight savings. The 10 new concept tires we used weighed 355 pounds less than 'like' tires currently on the market, and those tires also had an extremely low rolling resistance -- measuring 4.2 on the CRR scale versus 5.0 for typical high-efficiency tires. We also found that less fuel was required with the more fuel-efficient powertrain -- this allowed us to put on a smaller 80-gallon fuel tank to go the same distance as before. So, here again, we're saving weight. It all builds upon itself."
Climbing into the truck is altogether different. The driver-side door has a large opening, and the extendable bottom step supports a stairway-like entry and exit. Drivers have easy-viewing electronics at their disposal: SuperTruck 2 features PACCAR's state-of-the-art 15-in. digital display, with a configurable gauge layout, advanced driver notifications, and a user-friendly menu navigation.

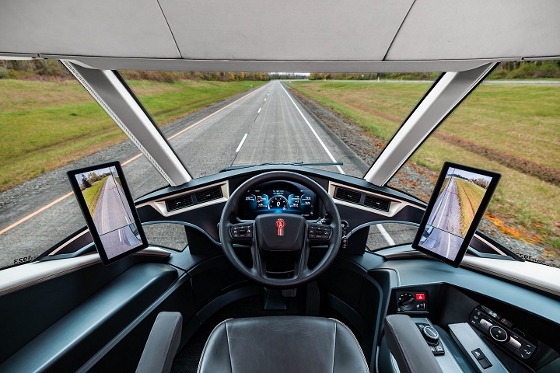

Once behind the wheel, drivers have a view like nothing else in the trucking industry. "We made the windshield very parabolic and smooth to the flow. We also went one step further and eliminated physical mirrors altogether, minimizing drag," said Duncan. "The integrated digital mirror system enables enhanced rearview monitoring, with trailer tracking capability and night vision enhancements, technology currently available in Kenworth T680 models."

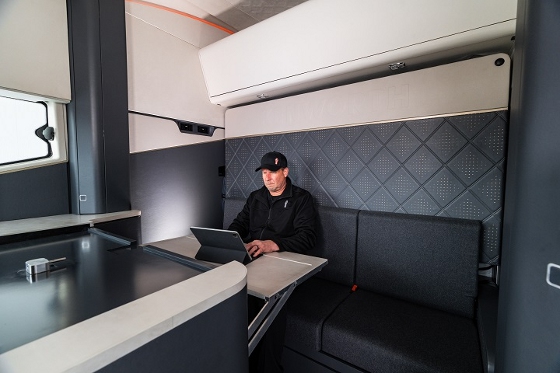

Driver comfort in the SuperTruck 2 includes a separate sleeping and sitting area with a rotating table.
For drivers' off hours, Kenworth took the extra step to design a unique sleeper berth. "One of the features we're trialing is a bed that folds down over the sofa," said Duncan. "This provides a separate sleeping and sitting area. We also came up with a neat concept: having a tabletop that rotates down when you're sitting on the sofa. You can actually eat or work then move the table to a different location without moving anything off the tabletop."
All told, Kenworth's SuperTruck 2 gives not only a potential glimpse of the future but new ideas for consideration. "Working in the trucking industry is very exciting," said Adams. "There are major challenges ahead as we continue to advance vehicle performance, all while keeping in mind the goal to be a carbon-neutral society by 2050. This will require tremendous technology changes in the trucking industry, and partnering with the DOE on the SuperTruck 2 program was a tremendous opportunity to consider what will be possible as we look toward the future."
The world-class research and development facilities and staff at the PACCAR Technical Center were key to the success of the SuperTruck 2 program. "PACCAR's continued commitment to technical excellence, quality, and innovation are evident in the investments made in powertrain development and validation facilities at the Technical Center," said Phil Stephenson, general manager of the PACCAR Technical Center. "Capabilities including high-speed test track, climatic chassis dynamometer wind tunnel, engine test labs, and advanced simulation tools were key to developing and validating the advanced technologies delivered in SuperTruck 2."
"I'm very proud of this project," added Walenczak. "Kenworth just celebrated its 100th anniversary, and SuperTruck 2 builds on Kenworth's history of providing value to its customers. ... This truck is an important milestone for us -- to look forward and see where we might be going in the future."
In addition to Kenworth's public-private partnership with the DOE, the following companies and institutions provided product and research development for the SuperTruck 2 program: AVL (engine development), Eaton (powertrain development), the National Renewable Energy Laboratory, and The Ohio State University.
Learn more at kenworth.com/innovation/st2/.
Commercial Carrier Journal has a good video of the Truck at its debut and a lot of extra info. You can view that here.
Source: Kenworth
Published August 2024
