Silent amplifier with simplified transmitter improves space communication

In space exploration, long-distance optical links can now be used to transmit images, films, and data from space probes to Earth using light. In order for the signals to reach all the way and not be disturbed along the way, however, hypersensitive receivers and noise-free amplifiers are required.

Now, researchers at Chalmers University of Technology in Sweden have created a system that, with a silent amplifier and record-sensitive receiver, paves the way for faster and improved space communication.

Space communication systems are increasingly based on optical laser beams rather than radio waves, as the signal loss has been shown to be less when light is used to carry information over very long distances. However, even information carried by light loses its power during the journey, and optical systems for space communication therefore require extremely sensitive receivers capable of sensing signals that have been greatly weakened before they finally reach Earth. The Chalmers researchers' concept for optical space communication opens up new communication opportunities -- and discoveries -- in space.

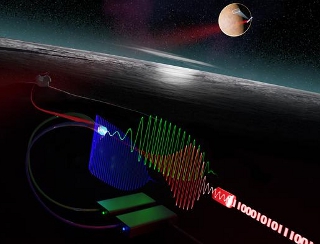

How it works: In the new communication system from researchers at Chalmers University of Technology, a weak optical signal (red) from the spacecraft's transmitter can be amplified noise-free when it encounters two so-called pump waves (blue and green) of different frequencies in a receiver on Earth. Thanks to the researchers' noise-free amplifiers in the receiver, the signal is kept undisturbed, and the reception on Earth becomes record-sensitive, which in turn paves the way for a more error-free and faster data transmission in space in the future. [Credit: Image courtesy of Chalmers University of Technology/Rasmus Larsson]

"We can demonstrate a new system for optical communication with a receiver that is more sensitive than has been demonstrated previously at high data rates. This means that you can get a faster and more error-free transfer of information over very long distances, for example when you want to send high-resolution images or videos from the Moon or Mars to Earth," says Peter Andrekson, Professor of Photonics at Chalmers and one of the lead authors of the study, which was recently published in the scientific journal Optica.

Silent amplifier with simplified transmitter improves communication
The researchers' communication system uses an optical amplifier in the receiver that amplifies the signal with the least possible noise so that its information can be recycled. Just like the glow of a flashlight, the light from the transmitter widens and weakens with distance. Without amplification, the signal is so weak after the space flight that it is drowned out by the electronic noise of the receiver. After 20 years of struggling with disturbing noise that impaired the signals, the research team at Chalmers was able to demonstrate a noise-free optical amplifier a few years ago. Until now, however, the silent amplifier has not been able to be used practically in optical communication links, as it has placed completely new, significantly more complex, demands on both transmitter and receiver.

Due to the limited resources and minimal space on board a space probe, it is important that the transmitter is as simple as possible. By allowing the receiver on Earth to generate two of the three light frequencies needed for noise-free amplification, and at the same time allowing the transmitter to generate only one frequency, the Chalmers researchers were able to implement the noise-free amplifier in an optical communication system for the first time. The results show an outstanding sensitivity, while complexity at the transmitter is modest.

"This phase-sensitive optical amplifier does not, in principle, generate any extra noise, which contributes to a more sensitive receiver and an error-free data transmission is achieved even when the power of the signal is lower. By generating two extra waves of different frequencies in the receiver, rather than as previously done in the transmitter, a conventional laser transmitter with one wave can now be used to implement the amplifier. Our simplification of the transmitter means that already existing optical transmitters on board satellites and probes could be used together with the noise-free amplifier in a receiver on Earth," says Rasmus Larsson, postdoctoral researcher in photonics at Chalmers and one of the lead authors of the study.

Can solve a problematic bottleneck
The progress means the researchers' silent amplifiers can eventually be used in practice in communication links between space and Earth. The system is thus poised to contribute in solving a well-known bottleneck problem among space agencies today.

Andrekson says NASA talks about "the science return bottleneck, and here the speed of the collection of scientific data from space to Earth is a factor that constitutes an obstacle in the chain. We believe that our system is an important step forward towards a practical solution that can resolve this bottleneck."

The next step for the researchers is to test the optical communication system with the implemented amplifier during field studies on Earth, and later also in communication links between a satellite and Earth.

Source: Chalmers University of Technology
