New laser-cutting tech pushes limits for steel cutting thickness under water

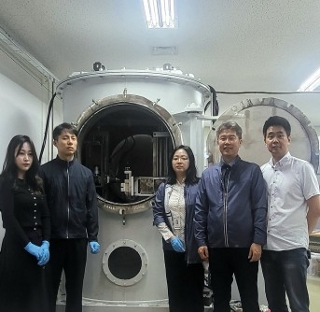

The KIMM research developed laser-processing equipment simulating environments deeper than 10 m under water. From right: Senior researcher Ryun-Han Kim, principal researcher In-Deok Park, principal researcher Su-Jin Lee, senior engineer Jung-Soo Choi, and researcher Dan-Bi Song. [Credit: Korea Institute of Machinery and Materials]









Researchers in South Korea have created and tested an new, innovative laser-cutting technology for nuclear dismantlement under water. This system ensures safety in underwater conditions while minimizing contamination. Furthermore, a water tank that simulates laser cutting in an underwater environment for nuclear dismantlement has been developed and patented for the first time globally.

The development team, led by Dr. In-Deok Park, principal researcher at the department of Industrial Laser Technology of the Busan Machinery Research Center at the Korea Institute of Machinery and Materials (KIMM), successfully developed the underwater laser-cutting technology, which is capable of cutting stainless steel specimens with a thickness of over 100 mm in a simulated 10-m water-depth environment.

During nuclear power plant dismantlement, structural cutting methods include mechanical and thermal cutting. The technology developed by KIMM falls under the thermal cutting category, employing high-power lasers to perform underwater cutting that is both safer and generates minimal contamination. The research team achieved a breakthrough by successfully cutting a 100-mm-thick stainless steel specimen, the primary material used in nuclear pressure vessels, at an actual water depth of 10 m. Currently, laser cutting under water is usually limited to cutting 50-mm-thick steel max, although that figure can be achieved at depths to 200 m.

The team optimized the kerf width (cutting gap) to approximately 2 mm, and reduced the flow rate of cutting gas used in the laser process to 600 l/min. A cutting speed up to 50 mm/min. was also achieved, demonstrating the efficiency of the technology.

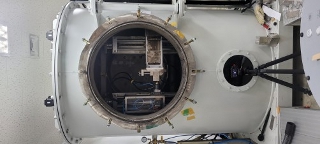

10-m-grade pressurized underwater tank and cutting head. [Credit: Korea Institute of Machinery and Materials]





In preparation for full-scale nuclear dismantlement, the team developed and patented the world's first 30-m-grade underwater laser-cutting pressurized tank, replicating actual field conditions. They also designed a compact multi-nozzle system optimized for high-pressure underwater environments, for which a patent application is currently underway. Additionally, they independently developed an anti-collision device to prevent accidents during the underwater laser-cutting process caused by collisions between the specimen and the nozzle.

"The underwater laser-cutting technology developed is significant, as it directly simulates the nuclear dismantlement environment, greatly minimizing secondary contamination during the dismantling process," said Park. "With the number of nuclear facilities expected to permanently shut down continuing to rise until 2050, we plan to further advance and conduct demonstration research based on this technology."

The research was supported by the project "Laser Decontamination and Underwater Laser-Cutting Technology Development Project for Safe Nuclear Dismantlement," with collaborative efforts from Pusan National University and Korea Maritime & Ocean University and funded by a major project of KIMM. Follow-up demonstration tests are being conducted through the Ministry of Trade, Industry, and Energy's Advancement and Demonstration of Laser Cutting/Dismantling Technology (Nuclear Dismantlement Competency Enhancement Technology Development Project).

Source: Korea Institute of Machinery and Materials

Published November 2024
