Amplifier with 10x bandwidth opens up new laser possibilities

Rapidly increasing data traffic is placing ever greater demands on the capacity of communication systems. In an article published in Nature, a research team from Chalmers University of Technology in Sweden introduces a new amplifier that enables the transmission of 10 times more data per second than those of current fiber-optic systems. This amplifier, which fits on a small chip, holds significant potential for various critical laser systems, including those used in medical diagnostics and treatment.

The advancement of AI technology, the growing popularity of streaming services, and the proliferation of new smart devices are among the factors driving the expected doubling of data traffic by 2030. This surge is heightening the demand for communication systems capable of managing vast amounts of information.

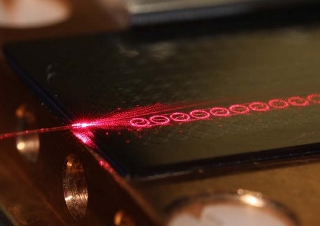

The amplifier developed by Chalmers researchers is compact, measuring just a few centimeters, yet it can process 10 times larger amounts of data per second than current optical communication systems. It features a pattern of spiral-shaped, interconnected waveguides that efficiently direct the laser beam with high precision and minimal loss. [Credit: Chalmers University of Technology, Vijay Shekhawat]









Currently, optical communication systems are employed for the internet, telecommunications, and other data-intensive services. These systems utilize light to transmit information over long distances. The data is conveyed through laser pulses that travel at high speeds through optical fibers, which are composed of thin strands of glass.

To ensure that information maintains a high quality and isn't overwhelmed by noise, optical amplifiers are essential. The data transmission capacity of an optical communication system is largely determined by the amplifier's bandwidth, which refers to the range of light wavelengths it can handle.

"The amplifiers currently used in optical communication systems have a bandwidth of approximately 30 nanometers (nm). Our amplifier, however, boasts a bandwidth of 300 nanometers, enabling it to transmit ten times more data per second than those of existing systems," says Peter Andrekson, professor of Photonics at Chalmers and lead author of the study published in Nature.

Small, sensitive, and powerful
The new amplifier, made of silicon nitride, features several small, spiral-shaped, interconnected waveguides that efficiently direct light with minimal loss. By combining this material with an optimized geometric design, several technical advantages have been achieved.

"The key innovation of this amplifier is its ability to increase bandwidth tenfold while reducing noise more effectively than any other type of amplifier. This capability allows it to amplify very weak signals, such as those used in space communication," says Andrekson.

Additionally, the researchers have successfully miniaturized the system to fit on a chip just a few centimeters in size.

"While building amplifiers on small chips is not a new concept, this is the first instance of achieving such a large bandwidth," says Andrekson.

One use: Earlier detection of diseases
Light at different wavelengths serves various applications. The researchers have demonstrated that their new amplifier functions effectively within the optical communication spectrum, ranging from 1,400 to 1,700 nm. With its extensive bandwidth of 300 nm, the amplifier can potentially be adapted for use at other wavelengths. By modifying the waveguide design, it is possible to amplify signals in other ranges, such as visible light (400 to 700 nm) and infrared light (2,000 to 4,000 nm). Consequently, in the long term, the amplifier could be utilized in fields where visible or infrared light is essential.

The researchers have integrated multiple amplifiers onto the chip, allowing the concept to be easily scaled up as needed. Since optical amplifiers are crucial components in all lasers, the Chalmers researchers' design can be used to develop laser systems capable of rapidly changing wavelengths over a wide range. This innovation opens up numerous applications in society.

"Minor adjustments to the design would enable the amplification of visible and infrared light as well. This means the amplifier could be utilized in laser systems for medical diagnostics, analysis, and treatment. A large bandwidth allows for more precise analyses and imaging of tissues and organs, facilitating earlier detection of diseases," says Andrekson.

In addition to its broad application potential, the amplifier can also help make laser systems smaller and more affordable.

"This amplifier offers a scalable solution for lasers, enabling them to operate at various wavelengths while being more cost effective, compact, and energy efficient. Consequently, a single laser system based on this amplifier could be utilized across multiple fields. Beyond medical research, diagnostics, and treatment, it could also be applied in imaging, holography, spectroscopy, microscopy, and material and component characterization at entirely different wavelengths," says Andrekson.

Source: Chalmers University of Technology

Published April 2025
