New aircraft wing undergoes crucial NASA icing testing

By Brian Newbacher, NASA Glenn Research Center

In the future, aircraft with long, thin wings supported by aerodynamic braces could help airlines save on fuel costs. But those same wings could be susceptible to ice buildup. NASA researchers are currently working to determine if such an issue exists, and how it could be addressed.

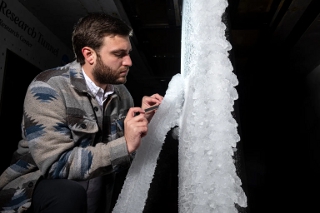

Thomas Ozoroski, a researcher at NASA's Glenn Research Center in Cleveland, takes icing accretion measurements in October 2024 as part of transonic truss-braced wing concept research. Researchers at NASA Glenn conducted another test campaign in March 2025. [Credit: Image courtesy of NASA/By Jordan Cochran]









In the historic Icing Research Tunnel at NASA's Glenn Research Center in Cleveland, scientists and engineers are testing a concept for a transonic truss-braced wing. Their goal: collect important data to inform the design of these potential efficient aircraft of the future.

A transonic truss-braced wing generates less drag in flight compared to today's aircraft wings, so the aircraft burns less fuel. This revolutionary design could make the wing more prone to ice buildup, though, so it must undergo a series of rigorous tests to predict its safety and performance. The data the research team has collected so far suggests large sections of the frontmost part of the wing (also known as the leading edge) will require an ice protection system, similar to those found on some commercial aircraft.

NASA Glenn can simulate icing conditions in its Icing Research Tunnel to identify potential challenges for new aircraft designs. These tests provide important information about how ice builds up on wings and can help identify the most critical icing conditions for safety. All commercial aircraft must be approved by the Federal Aviation Administration to operate in all kinds of weather.

This artist's concept shows the transonic truss-braced wing concept. NASA's Advanced Air Transport Technology project is exploring the design, which involves a longer, thinner wing structure with struts to enhance aerodynamic efficiency and reduce fuel consumption. [Credit: Image courtesy of NASA]









This research is part of NASA's work to mature transonic truss-braced technology by looking at issues including safety and how future aircraft could be integrated into U.S. aviation infrastructure. Boeing is also working with NASA to build, test, and fly the X-66, a full-sized demonstrator aircraft with transonic truss-braced wings. Because the experimental aircraft will not be flown in icy conditions, tests in the Icing Research Tunnel are providing answers to questions about ice buildup.

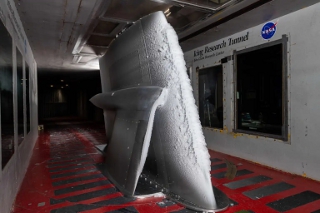

Because of the thinness of the transonic truss-braced wing design, ice tends to build up during cold conditions, as seen during a test in October 2024. Researchers at NASA's Glenn Research Center in Cleveland conducted another test campaign in March 2025, collecting important data to ensure safety. [Credit: Image courtesy of NASA/By Jordan Cochran]









This work advances NASA's role in developing ultra-efficient airliner technologies that are economically, operationally, and environmentally sustainable. For about two decades, NASA has invested in research aimed at advancing transonic truss-braced wing technology to the point where private sector aeronautics companies can integrate it into commercial aircraft configurations. NASA invests in this research through initiatives including its Advanced Air Transport Technology project, which investigates specific performance aspects of transonic truss-braced wing concepts, such as icing. The Advanced Air Transport Technology project is part of NASA's Advanced Air Vehicles Program.

Read more NASA Glann news at nasa.gov/2025-news-releases/.

Published April 2025
