New approach to reduce aerodynamic drag in next-gen high-speed trains

A study recently published in the journal Advances in Wind Engineering reported a new approach to reduce aerodynamic drag in next-generation high-speed trains, potentially enabling more energy-efficient operation at speeds of 250 mph (400 km/h).

Through design optimizations of multiple train components, the researchers achieved an impressive 22.11% reduction in aerodynamic drag compared to current operational models -- one of the most substantial improvements reported in recent railway research.

"The key to substantial drag reduction lies in coordinated improvements across multiple train components," explained first author Prof. Wang Tiantian from Central South University's Key Laboratory of Traffic Safety on Track in China.

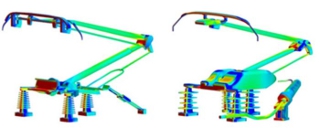

Pressure contours of the original (left) and optimized (right) pantograph. [Credit: Tian-tian W, Li Y, Yu W, et al.]





"While conventional approaches often focus on optimizing individual elements in isolation, we've found that simultaneously enhancing the train's nose shape, pantograph design, and bogie fairings can deliver notable improvements," Wang explained.

The team observed that extending the streamlined nose to 15 m while moderately reducing train height produced measurable aerodynamic benefits. "The redesigned low-drag pantograph, featuring optimized geometry, demonstrated promising performance gains," said Wang. "Additionally, certain uneven bogie fairing configurations might offer advantages over traditional flush designs in specific applications."

While further research is needed to fully assess the practical implications, the study provides new insights for future train design considerations.

Source: KeAi Communications Co., Ltd.

Published September 2025
