Students build modular electric city car you can repair yourself

The TU/ecomotive student team with their ARIA modular electric car. [Credit: Photo by Sarp Güre/Courtesy ofTU/ecomotive]





In a bid to challenge the automotive industry and European policymakers, a team of university students in the Netherlands has designed and built a small electric car (EV) that can be easily repaired so owners are not dependent on a car manufacturer for minor fixes.

The ARIA electric city car was created by students at Eindhoven University of Technology (TU/ecomotive). The key lies in the construction: ARIA consists of separate components such as the battery, body panels, and electronic elements in the interior. If something breaks, the user only replaces the faulty part. With clear manuals, standardized components, a built-in toolbox, and an app that reads out the car's status, owners/users can perform maintenance themselves.

One notable design feature is the battery pack. Whereas regular EVs have one large, heavy battery, ARIA uses six smaller modules that way about 12 kg each. Each can be detached by hand, and replacing one unit is almost as easy as replacing a battery in your remote control. Together, the six batteries provide a total capacity of 12.96 kWh.

The exterior is cleverly designed as well. Got a scratch or dent? Click the panel off and replace it within a few minutes. Remove a panel, and you instantly have access to the components behind it.

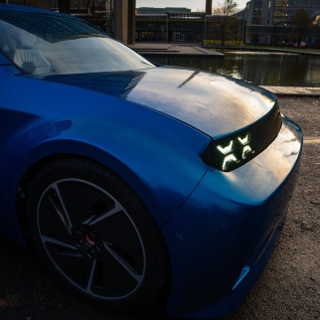

The ARIA modular EV was designed with many parts that are easily replaceable, including battery modules. [Credit: Photo by Sarp Güre/Courtesy ofTU/ecomotive]





With this design, the students want to significantly improve repair options for EVs, which they consider to be urgently needed, since electric cars are becoming increasingly difficult to repair. Batteries are often integrated into the chassis, parts are not standardized and are hard to obtain for independent garages. There is also a shortage of technicians specialized in electric drivetrains and battery systems, which makes repairs take longer and become more expensive. The result: Cars are potentially discarded faster than necessary.

"That undermines the sustainable image of the EV," says team manager Taco Olmer. With this new concept, TU/ecomotive responds to the European legislation passed last year that gives consumers the right to repair products more quickly, cheaply, and easily.

"The new European rules are a step forward, but they mainly focus on household appliances and consumer electronics," says Olmer. "EVs still fall through the cracks. With ARIA, we show what is possible and hope to encourage the EU to apply those rules to passenger cars as well. At the same time, we want to show the automotive industry that sustainable and practical design really is achievable. If we can build this within a year, there are opportunities for the industry."

TU/ecomotive supports the Right to Repair Europe coalition, a network of more than 180 organizations from 30 countries, ranging from environmental groups to companies in the repair sector. This coalition has long been advocating for better regulations to ensure that components in electric vehicles, including batteries, remain repairable and replaceable. This includes fair access to spare parts and software updates.

"Right to Repair is about giving control back to the user," says Olmer. "That's exactly what we are doing as well."

Source: Eindhoven University of Technology (TU/ecomotive)

Published December 2025.
