By Engineers at Kemal Precision Manufacturing
In plastic part production, many of the challenges encountered during molding or assembly can be traced back to early design decisions. Wall thickness variations, inadequate draft angles, or unconsidered tolerances often result in costly tooling modifications and extended lead times.
Manufacturability is not a secondary concern; it is an integral part of the design process. By aligning structural design principles with the realities of molding and tooling, engineers can reduce rework, improve dimensional stability, and ensure consistent part quality. In practice, considering manufacturability early also strengthens collaboration between product engineers and tooling experts involved in plastic mold design.

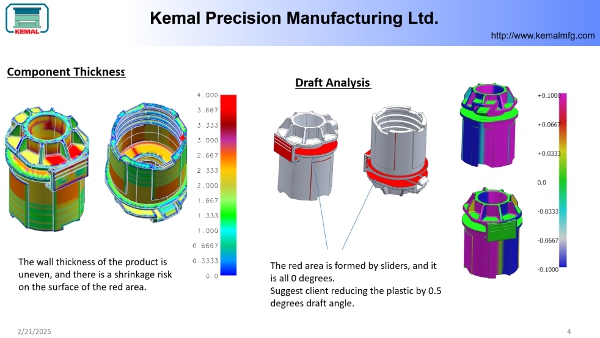

DFM analysis showing wall-thickness variation and draft-angle issues. [Credit: Image courtesy of Kemal Precision Manufacturing]
The following five guidelines summarize proven engineering practices that help designers achieve better moldability, shorter development cycles, and more predictable outcomes.
Tip #1: Eliminate Design Features That Complicate Molding
Complex geometric details often create unnecessary obstacles during mold construction and part ejection. Deep undercuts, sharp internal corners, and non-uniform parting lines increase tooling complexity and introduce higher maintenance demands.
To improve manufacturability:
Simplified geometry reduces the need for sliders, lifters, and collapsible cores -- features that significantly increase tooling cost and cycle time. During custom plastic molding, such simplification improves repeatability, reduces the risk of flashing or sink marks, and enhances mold longevity. In practice, a balanced design often achieves both functional performance and production efficiency.
Tip #2: Maintain Uniform Wall Thickness for Controlled Flow and Cooling
Uneven wall thickness is among the most frequent causes of molding defects. Localized variations affect flow balance, pressure distribution, and cooling uniformity, leading to warpage, sink marks, or short shots.
Good design practice recommends:
At the stage of plastic mold design, flow and cooling analysis (e.g., Moldflow simulation) helps identify potential issues related to shear stress, pressure loss, and differential shrinkage. Maintaining uniform sections stabilizes heat transfer, minimizes internal stress, and improves the visual and dimensional consistency of molded parts.

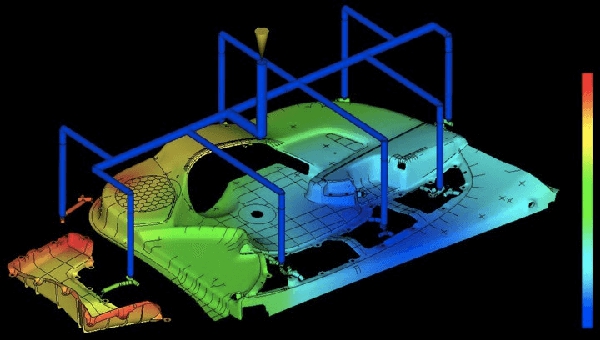

Moldflow simulation showing flow behavior and pressure distribution during injection molding. [Credit: Image courtesy of Kemal Precision Manufacturing]
Tip #3: Apply Adequate Draft Angles for Reliable Ejection
Insufficient draft angles are a common oversight that leads to part sticking, surface scratching, or mold damage. Proper draft is essential to ensure smooth release without excessive ejection force.
Recommended design parameters include:

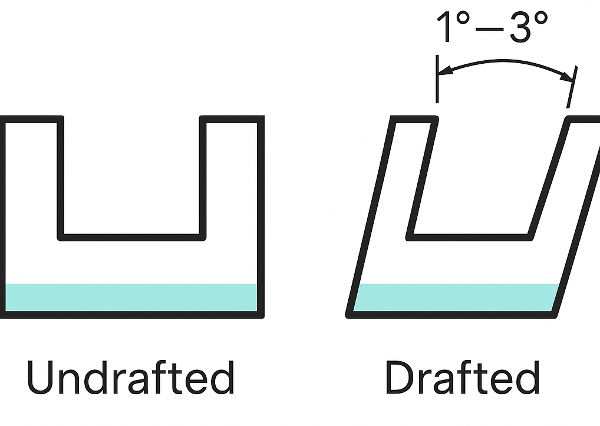

Comparison of undrafted and drafted wall sections. Adding a 1° to 3° draft angle helps ensure smooth ejection and reduces the risk of sticking or surface drag. [Credit: Image courtesy of Kemal Precision Manufacturing]
Incorporating draft checks within the CAD environment ensures alignment between the model and the tooling direction. Early draft validation prevents costly tooling revisions and reduces cycle time. Effective plastic mold design integrates these draft principles to balance aesthetic intent with production feasibility.
Tip #4: Define Tolerances and Assembly Requirements Early
Dimensional precision is critical when multiple molded components must be assembled together or interface with metal parts. However, plastic materials exhibit inherent shrinkage and thermal expansion that vary with material grade and processing conditions.
Typical linear shrinkage for thermoplastics ranges between 0.5% and 1.5%, depending on mold temperature, part thickness, and gate location. To account for these effects:
Accurate dimensional planning ensures compatibility across mating components. During custom plastic molding, precise control of processing parameters -- such as packing pressure and cooling rate -- further supports the designer's intent and prevents dimensional drift in serial production.
Tip #5: Minimize Tool Rework Through Early Collaboration
Late-stage mold modifications are among the most expensive errors in product development. The root cause often lies in insufficient communication between the design and tooling teams.
Integrating tooling input during the design phase enables early identification of gating, venting, and cooling constraints. A structured DfM (Design for Manufacturability) review allows designers and plastic mold design engineers to analyze flow patterns, potential weld lines, and parting directions before steel cutting.
Recommended collaboration practices include:
Early collaboration eliminates unnecessary rework, shortens the validation cycle, and improves tooling accuracy.
Lessons from Global OEM Collaboration
Projects involving global OEM design teams highlight the importance of consistent engineering communication. Different regions often apply different tolerance systems, safety factors, and aesthetic priorities. A standardized DfM checklist -- covering wall thickness, gate location, and material selection -- creates alignment across teams.
In one case study, synchronized reviews between product engineers and mold suppliers reduced mold trials from three to one, saving several weeks of development. The lesson is straightforward: Consistent data exchange and early validation produce better results than multiple rounds of reactive corrections.
Establishing shared databases for materials, molding parameters, and tolerance limits can further improve design predictability and cross-site collaboration efficiency.
Conclusion: Building Manufacturable Designs from Concept to Production
Designing for manufacturability requires a mindset that bridges creativity and practicality. Each design decision -- from geometry to tolerance -- has direct implications for tooling complexity, processing time, and part reliability.
To summarize:
1. Simplify geometry to reduce tooling complexity.
2. Maintain uniform wall thickness.
3. Apply sufficient draft angles.
4. Plan tolerances and assembly requirements early.
5. Collaborate with tooling experts from the start.
By incorporating these principles into your workflow and engaging with partners experienced in plastic mold design and custom plastic molding, you can significantly reduce development time, improve quality consistency, and achieve greater production efficiency.
The most successful plastic products are not only innovative in form but also well engineered for the realities of manufacturing -- a balance achieved through disciplined Design for Manufacturability.
Learn more about Kemal Precision Manufacturing at kemalmfg.com/.
